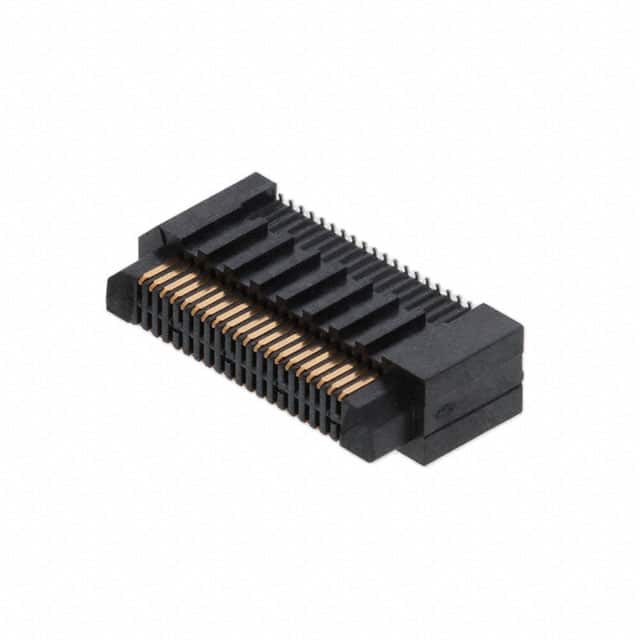

The Samtec ERM8-020-08.0-L-DV-K-TR is a 40-position, 2-row, 0.80mm pitch surface mount header from the Edge Rate series. It features a rugged design with 360° shielding to reduce EMI and is optimized for high-speed, high-cycle applications.
This connector has a mated stacking height range of 10mm, 12mm, and 15mm, and a board height of 8.91mm. It is rated for 1.4A per contact, 225VAC, and 318VDC, with an operating temperature range of -55°C to +125°C. The contacts are gold plated with a thickness of 0.25µm (10.0µin) over a nickel underplating.
The insulator is made of black LCP (Liquid Crystal Polymer), and the terminals are phosphor bronze or beryllium copper. It is lead-free solderable and packaged in tape and reel. Features include a board guide and pick and place for automated assembly.
It has 40 positions arranged in 2 rows.
The pitch is 0.80mm.
The current rating is 1.4A per contact.
It is rated for 225VAC and 318VDC.
It is a surface mount (SMD) connector.
The operating temperature range is -55°C to +125°C.
The contacts have a gold finish with a thickness of 0.25µm (10.0µin).
