| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Wipe | |
| Current Rating | |
| Features | |
| Height Above Board | |
| Insulator Material | |
| Lead Style | |
| Lead-Free Solderable | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Severe Environment Tested | |
| Terminal Material | |
| Termination Style | |
| Voltage Rating |

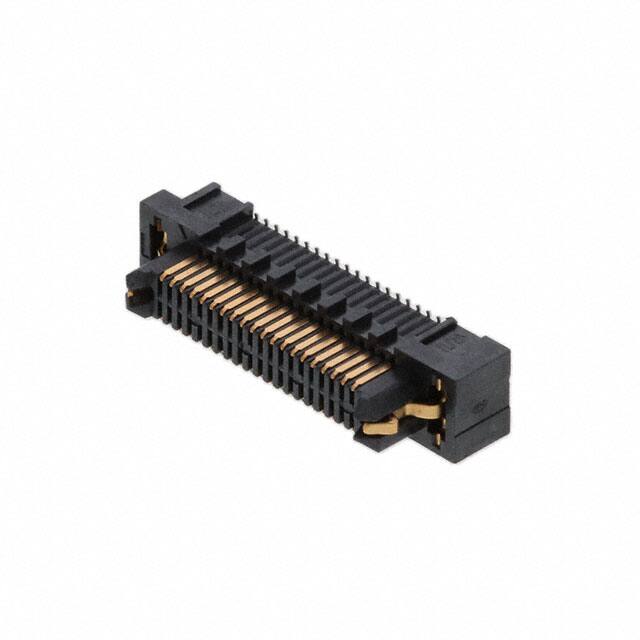

The Samtec ERM8-020-05.0-S-DV-L-TR is a 40 position, 2-row header with center strip contacts from the Edge Rate series. It features a 0.80mm pitch and surface mount termination, making it suitable for high-density board-to-board mezzanine applications. The connector is rated for 1.4A per contact and 225VAC / 318VDC, with an operating temperature range of -55°C to +125°C.
The Edge Rate contact system provides up to 1.5mm of contact wipe for reliable connections in high-cycle environments. The insulator is molded from black LCP, and contacts are gold plated over 30µin nickel. The part includes board guide and latch features for secure mating. Mated stacking heights of 10mm, 12mm, and 15mm are supported.
This connector is lead-free solderable and has been severe environment tested in alignment with MIL-DTL-55302. It is supplied in tape and reel packaging for automated assembly.
The pitch is 0.80mm.
It has 40 positions arranged in 2 rows.
The current rating is 1.4A per contact.
The voltage rating is 225 VAC / 318 VDC.
It uses surface mount (SMD) termination.
The operating temperature range is -55°C to +125°C.
Supported mated stacking heights are 10mm, 12mm, and 15mm.
