| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
142 pcs
|
142 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

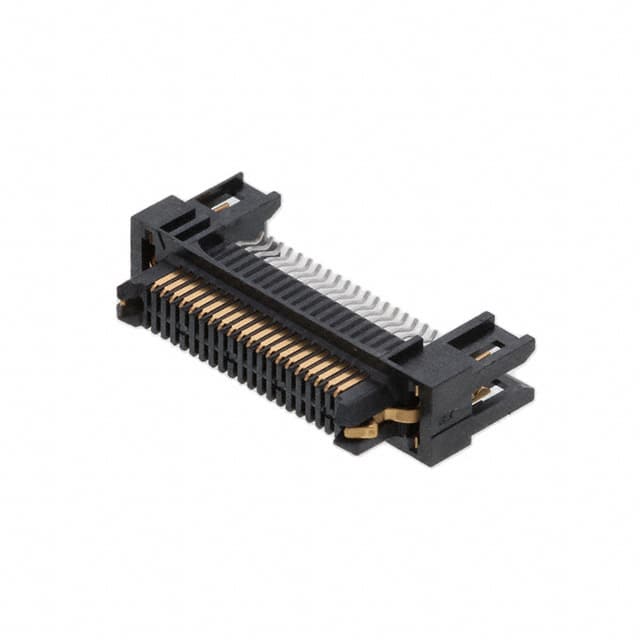

The ERM8-020-01-L-D-EM2-L-TR is a 40-position, 2-row header connector from Samtec Inc. It features a 0.80mm pitch and is designed for board edge, straddle mount applications. The connector uses center strip contacts with a gold contact finish of 0.25µm thickness and includes latches for secure mating.
This connector is RoHS3 compliant and REACH unaffected, with an MSL rating of Level 1 (unlimited). It is suitable for mezzanine board-to-board connections where space is limited. The part is available in tape and reel packaging (indicated by the TR suffix) and has cross-references for DigiKey ordering (SAM13709TR-ND, SAM13709CT-ND, SAM13709DKR-ND).
Typical applications include high-density interconnects in telecommunications, data centers, and industrial electronics where reliable signal integrity is required.
40 positions in 2 rows.
0.80 mm.
Board edge, straddle mount.
Gold with 0.25µm thickness.
Yes, it includes latches.
