| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

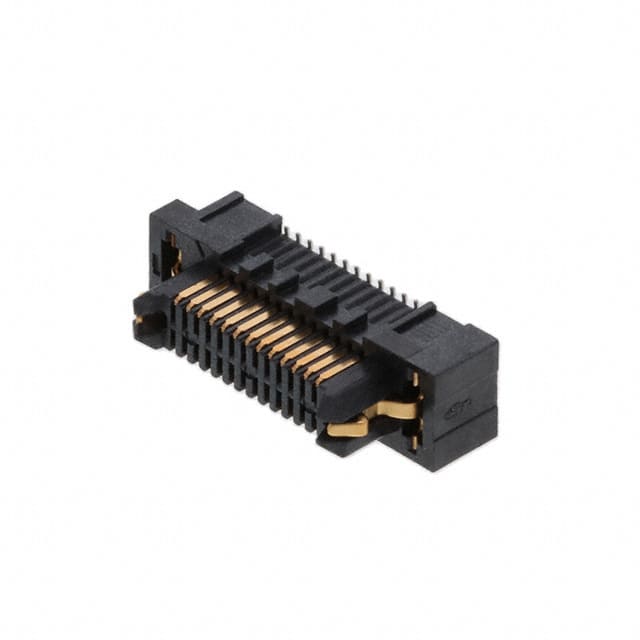

The ERM8-013-05.0-S-DV-L-K-TR is a 26-position, 2-row header with center strip contacts from Samtec Inc. It features a 0.8mm (0.031") pitch and surface mount termination. The connector is designed for board-to-board stacking applications with mated stacking heights of 10mm, 12mm, and 15mm. The gold contact finish provides reliable connectivity. Additional features include board guide, latches, and pick-and-place compatibility. The connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). The height above board is 0.351" (8.91mm). This part is suitable for mezzanine and parallel board connections.
26 positions in 2 rows.
0.8mm (0.031").
Surface mount.
Gold contact finish with 30.0µin (0.76µm) thickness.
10mm, 12mm, and 15mm.
Board guide, latches, and pick-and-place compatibility.
Yes, RoHS3 compliant and REACH unaffected. MSL 1 (unlimited).
