| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Standard Package Quantity |

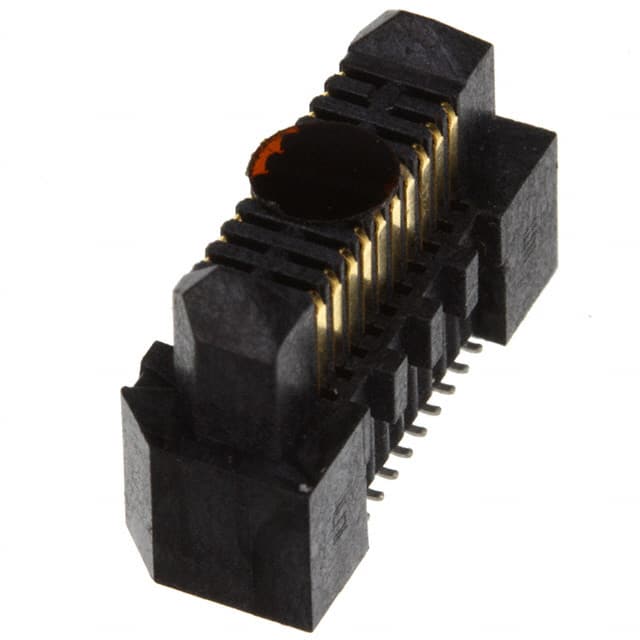

The Samtec ERM8-010-05.0-S-DV-K-TR is a 20-position, 2-row surface mount header with center strip contacts, part of the ERM8 series. It features a 0.80mm pitch and gold contact finish with 30µin thickness, designed for reliable connections in high-density applications.
This connector supports mated stacking heights of 10mm, 12mm, and 15mm, making it suitable for mezzanine board-to-board applications. It includes a board guide for alignment and pick and place features for efficient automated assembly. The connector is supplied in tape and reel packaging with a standard quantity of 125 units.
The ERM8-010-05.0-S-DV-K-TR is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited floor life). The gold contact finish ensures corrosion resistance and durability.
It has 20 positions in a 2-row configuration.
The pitch is 0.80mm (0.031 inches).
Surface mount.
Gold with a thickness of 30µin (0.76µm).
10mm, 12mm, and 15mm.
Yes, it includes a board guide and pick and place features.
Tape & Reel (TR) with a standard package quantity of 125.
