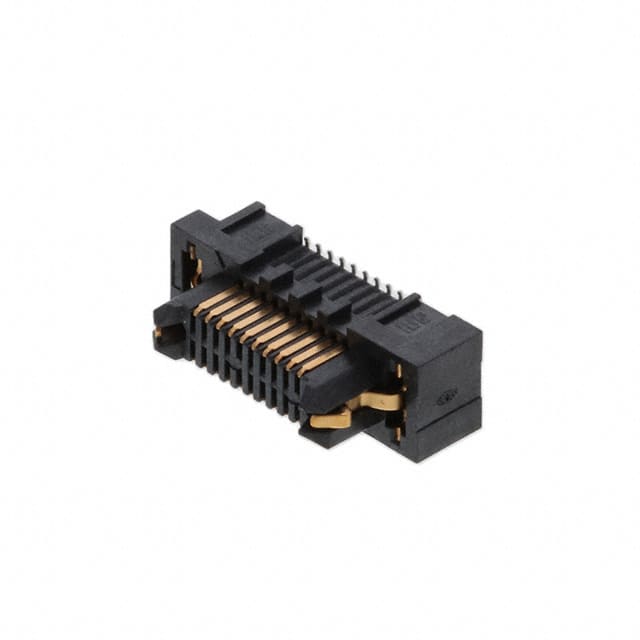

The ERM8-010-05.0-L-DV-L-K-TR is a 20 position, 2 row header from Samtec's Edge Rate ERM8 series. It features a 0.80mm pitch and surface mount termination with gold plated contacts (10µin) and matte tin tails. The connector is designed for mezzanine board-to-board stacking applications with supported stack heights of 10mm, 12mm, and 15mm.
This rugged high-speed connector strip incorporates Samtec's Edge Rate contact system for signal integrity and reliability. It includes board guide, latches, and pick and place features for automated assembly. The insulator is black LCP rated for operating temperatures from -55°C to +125°C.
Electrical ratings include 1.4A current per contact and 225VAC/318VDC voltage rating. The connector is lead-free solderable and packaged in tape and reel for SMT processing.
0.80mm (0.031").
20 positions arranged in 2 rows of 10 contacts per row.
1.4A per contact.
225 VAC / 318 VDC.
Surface mount (SMD).
-55°C to +125°C.
Gold on contact (10µin / 0.25µm) with matte tin on tail.
