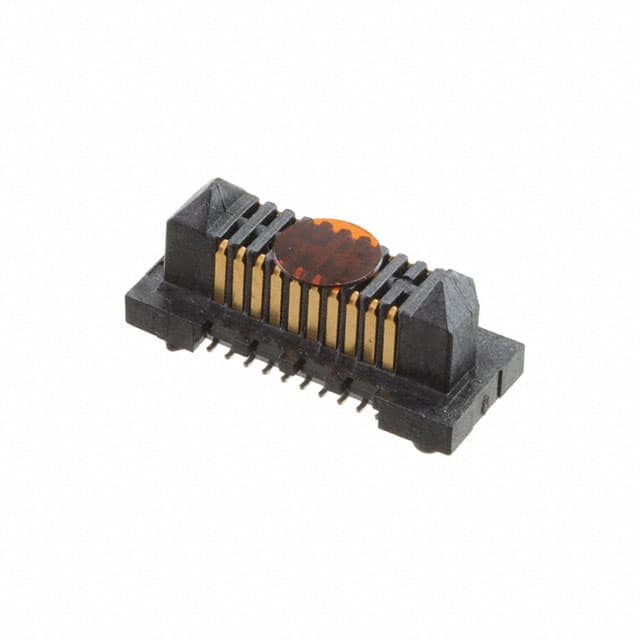

ERM8-010-02.0-S-DV-K-TR Connector Header, Center Strip Contacts, 20 positions, 0.80mm pitch, surface mount, gold contacts. Part of Samtec's Edge Rate series for high-speed applications.
Mfr Part #:

ERM8-010-02.0-S-DV-K-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Connector Header, Center Strip Contacts, 20 positions, 0.80mm pitch, surface mount, gold contacts. Part of Samtec's Edge Rate series for high-speed applications.
✓ Total Stock: 113 pcs

ERM8-010-02.0-S-DV-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
113 pcs
On Request
113 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERM8-010-02.0-S-DV-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Current Rating
Features
Height Above Board
Insulator Material
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Plating
Voltage Rating
View Similar Products (0)

ERM8-010-02.0-S-DV-K-TR Description

Short technical summary and product information.

The Samtec ERM8-010-02.0-S-DV-K-TR is a rugged high-speed header connector featuring the Edge Rate contact system designed for signal integrity and reliability. It has 20 positions arranged in 2 rows with a 0.80mm pitch, surface mount termination, and gold contacts with 30µin plating thickness.



Key electrical specifications include a current rating of 1.4A per contact and a voltage rating of 225 VAC / 318 VDC. The operating temperature range spans -55°C to +125°C, making it suitable for harsh environments. The connector supports mated stacking heights of 7mm, 9mm, and 12mm, offering flexibility in board-to-board spacing.



The insulator is molded from black LCP, and terminals are available in phosphor bronze or beryllium copper. Features include board guide and pick-and-place pads (polyimide film) for automated assembly. The part is qualified for severe environment testing per MIL-DTL-55302 and is lead-free solderable. Packaging is tape and reel.

ERM8-010-02.0-S-DV-K-TR Quick Information

Product Type: Header, Center Strip Contacts
Series: ERM8
Canonical Name: ERM8-010-02.0-S-DV-K-TR - 20 Position, 0.80mm Pitch, Surface Mount Header Connector
Subcategory: Mezzanine (Board to Board)

ERM8-010-02.0-S-DV-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

ERM8-010-02.0-S-DV-K-TR Features

  • Edge Rate contact system for signal integrity.
  • 20 positions with 0.80mm pitch.
  • 1.4A current rating per contact.
  • -55°C to +125°C operating range.
  • Qualified for severe environment testing.

ERM8-010-02.0-S-DV-K-TR Applications

  • High-speed mezzanine board-to-board interconnects.
  • Rugged environments requiring MIL-DTL-55302 compliance.
  • Stacking heights of 7mm, 9mm, or 12mm.
  • Automated pick-and-place assembly with polyimide pads.

ERM8-010-02.0-S-DV-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the ERM8-010-02.0-S-DV-K-TR have?

20 positions (2 rows).

What is the pitch of this connector?

0.80 mm (0.031 in).

What is the current rating?

1.4 A per contact.

What is the voltage rating?

225 VAC / 318 VDC.

What is the mounting type?

Surface mount (SMD).

What is the operating temperature range?

-55°C to +125°C.

What mated stacking heights are supported?

7 mm, 9 mm, and 12 mm.
