| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style |

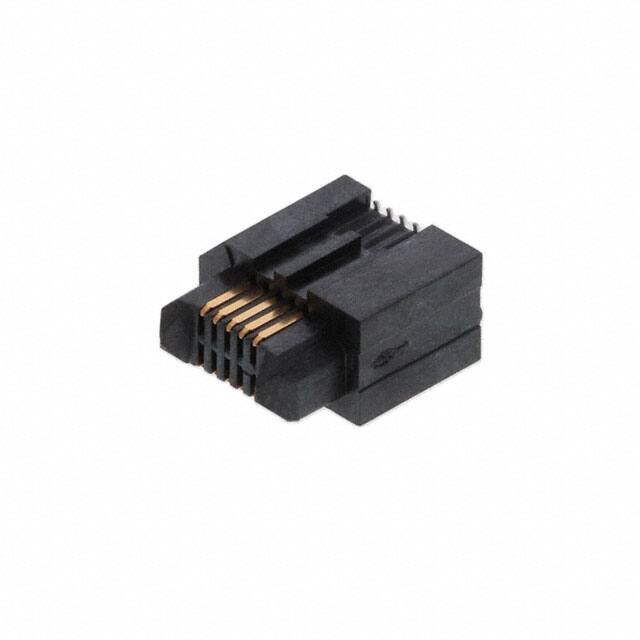

The Samtec ERM8-005-08.0-L-DV-K-TR is a high-density board-to-board connector from the ERM8 series. It is a 10-position, 2-row header with center strip contacts, designed for surface mount soldering. The connector features a 0.80mm pitch, enabling compact PCB designs.
This connector has gold-plated contacts with a thickness of 0.25µm, ensuring reliable signal integrity and corrosion resistance. It supports mated stacking heights of 10mm, 12mm, and 15mm, providing flexibility for various mezzanine board spacing requirements. The component includes a board guide for alignment and a pick and place feature for efficient automated manufacturing.
The connector is RoHS3 compliant and REACH unaffected. It is typically supplied in tape and reel packaging for high-volume assembly processes.
This connector has 10 positions arranged in 2 rows.
The pitch is 0.80mm.
This connector is surface mount.
The contacts have a gold finish with a thickness of 0.25µm.
It supports mated stacking heights of 10mm, 12mm, and 15mm.
It includes a board guide and a pick and place feature.
