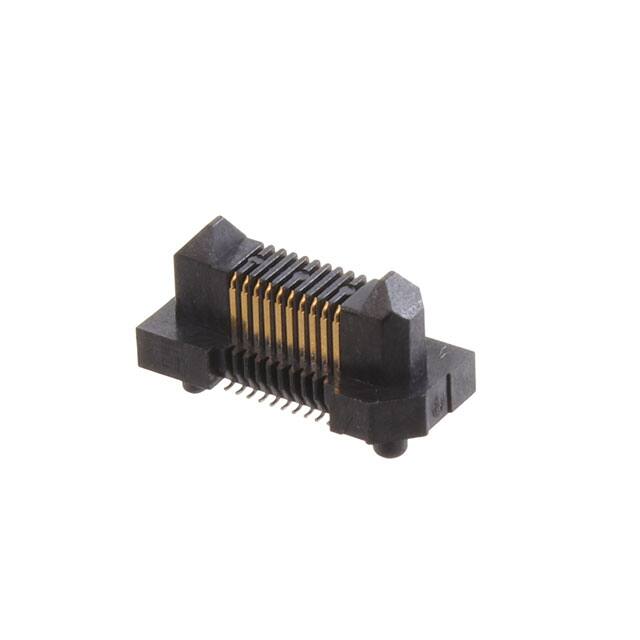

The ERM5-010-02.0-L-DV-TR is a board-mount header from Samtec's Edge Rate series, designed for high-speed mezzanine applications. It features 20 positions in 2 rows with a 0.50mm pitch, surface mount termination, and a height above board of 4.85mm. The connector uses the Edge Rate contact system for improved signal integrity and durability.
Key electrical specifications include a current rating of 1.5A per contact, voltage rating of 190 VAC / 269 VDC, and a maximum data rate of 28 Gbps. The operating temperature range is -55°C to +125°C. The contact finish is 10µin gold over nickel, and the insulator is black LCP.
The connector is supplied in tape and reel packaging with a standard quantity of 600 pieces. It is RoHS3 and REACH compliant, with MSL 1 unlimited. The part number includes options for plating and packaging. Mated stacking heights are 7mm and 9mm.
20 positions in 2 rows.
0.50mm (0.020")
1.5 A per contact.
190 VAC / 269 VDC.
Surface mount.
28 Gbps.
250 cycles.
