| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,905 pcs
|
4905 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Country of Origin | |
| Failure Rate | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Power Rating | |
| Resistance | |
| SVHC Present | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

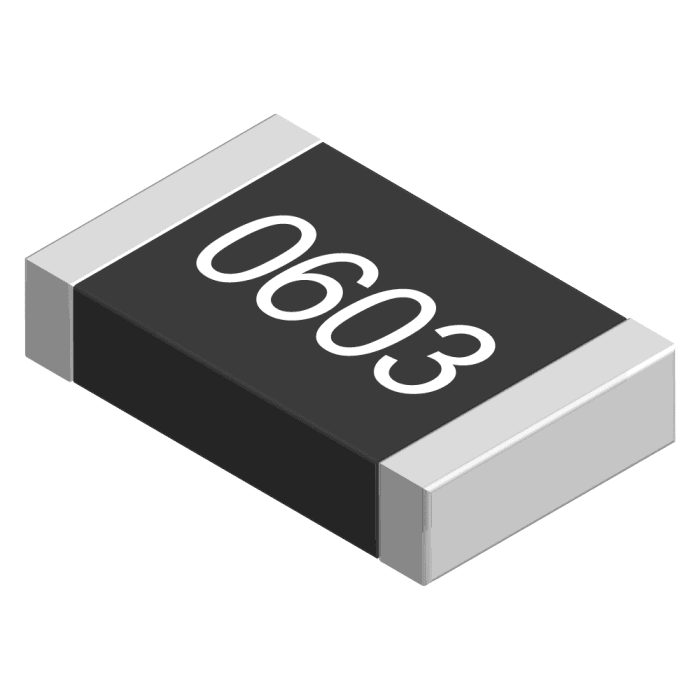

This Panasonic ERJPA3F7503V is a high-reliability thick film surface mount resistor designed for demanding applications. It features a resistance value of 750kΩ with a tight tolerance of ±1% and a power rating of 0.25W. The resistor operates within a wide temperature range of -55°C to 155°C and has a temperature coefficient of ±100 ppm/°C.
The component is housed in a compact 0603 package, measuring 1.6mm in length, 0.8mm in width, and 0.45mm in height, making it suitable for space-constrained PCB designs. Its thick film technology provides superior ESD surge characteristics, with an ESD voltage rating of 3.0kV. The ERJPA3 series is suitable for both reflow and flow soldering processes.
With AEC-Q200 certification, this resistor is ideal for automotive applications, including power supplies, inverters, strobe lighting, LCD televisions, and other consumer electronics. It is manufactured in Japan and supplied in punched carrier tape packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ERJPA3F7503V has a resistance of 750kΩ.
The ERJPA3F7503V resistor has a tolerance of ±1%.
The ERJPA3F7503V has a power rating of 0.25W.
The temperature coefficient of the ERJPA3F7503V is -100 to +100 ppm/°C.
The ERJPA3F7503V comes in a 0603 package.
The maximum operating voltage for the ERJPA3F7503V is 100V.
The ERJPA3F7503V has a length of 1.6mm, a width of 0.8mm, and a height of 0.45mm.
