| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,420 pcs
|
4420 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Height | |
| Lead Style | |
| Length | |
| Power Rating | |
| Resistance | |
| SVHC Present | |
| Tape & Reel | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |
This Panasonic ERJP03F1004V is a thick film surface mount resistor from the ERJP03 series. It offers a resistance value of 1 MΩ with a tight tolerance of ±1%. The resistor is rated for 0.2W of power and operates within a temperature range of -55°C to 155°C.
Constructed with a metal glaze thick film resistive element and a protective coating, this resistor ensures high reliability. It is designed for reflow and flow soldering. The component meets automotive standards, being AEC-Q200 qualified, making it suitable for automotive applications.

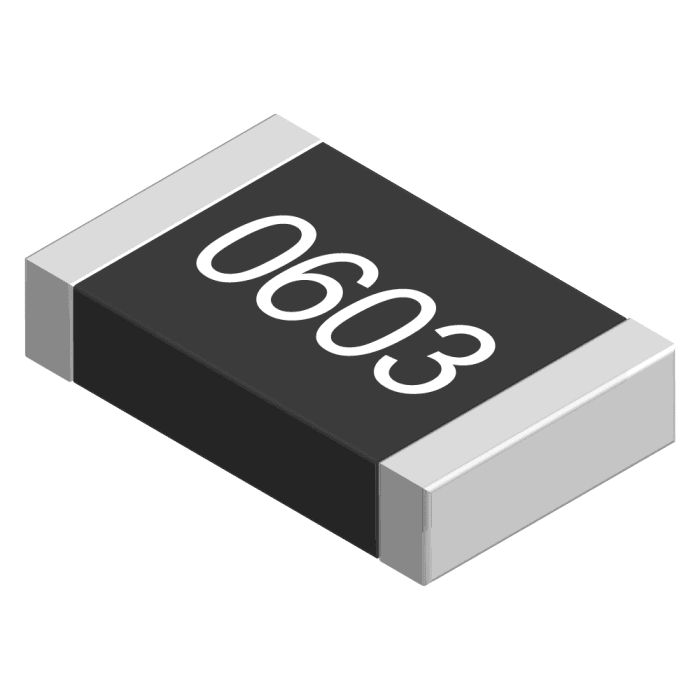

The resistor comes in a compact 0603 package with tab termination style. Its dimensions are 1.6mm in length and 0.8mm in width, with a height of 0.45mm. It is supplied on a punched carrier tape.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance is 1 MΩ.
The tolerance is ±1%.
The power rating is 0.2W.
The temperature coefficient is ±200 ppm/°C.
It is an 0603 package with dimensions 1.6mm x 0.8mm x 0.45mm.
Yes, it is AEC-Q200 qualified for automotive applications.
It operates from -55°C to 155°C.
