| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
$0.03
|
5000 pcs |
$0.03
|
1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
4,987 pcs
|
4987 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Dimensions | |
| Features | |
| Mounting Type | |
| Operating Temperature | |
| Power Rating | |
| Ratings | |
| Resistance | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance |

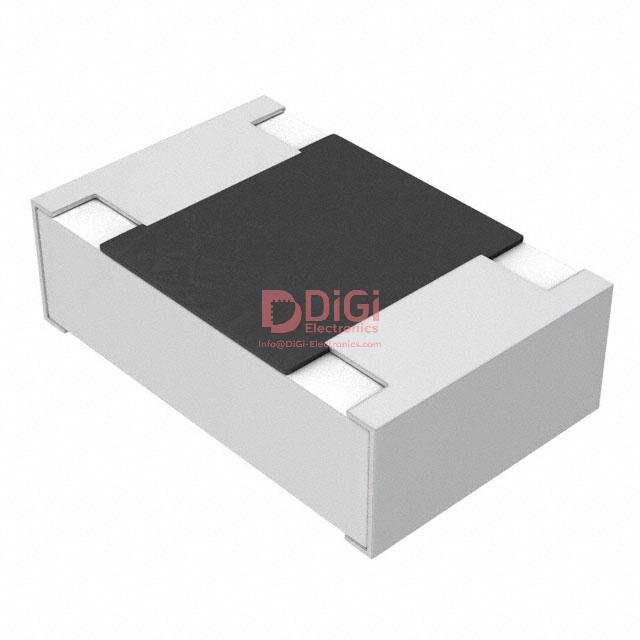

This Panasonic Electronic Components ERJ6GEYJ104V is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 100 kOhms with a tight tolerance of ±5%, ensuring precise circuit performance.
The resistor has a power rating of 0.125W (1/8W) and is constructed using thick film technology. It operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±200ppm/°C.
The component comes in an 0805 (2012 Metric) package, suitable for surface mounting. Its dimensions are 0.079" L x 0.049" W (2.00mm x 1.25m). The part is also rated for Automotive AEC-Q200 compliance, indicating its suitability for automotive applications.
This chip resistor is packaged in Cut Tape (CT) & Digi-Reel®, making it compatible with automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ERJ6GEYJ104V has a nominal resistance of 100 kOhms.
The tolerance of the ERJ6GEYJ104V is ±5%.
The ERJ6GEYJ104V has a power rating of 0.125W, or 1/8W.
The temperature coefficient of the ERJ6GEYJ104V is ±200ppm/°C.
The ERJ6GEYJ104V comes in an 0805 (2012 Metric) surface mount package.
The operating temperature range for the ERJ6GEYJ104V is -55°C to 155°C.
Yes, the ERJ6GEYJ104V is Automotive AEC-Q200 qualified.
