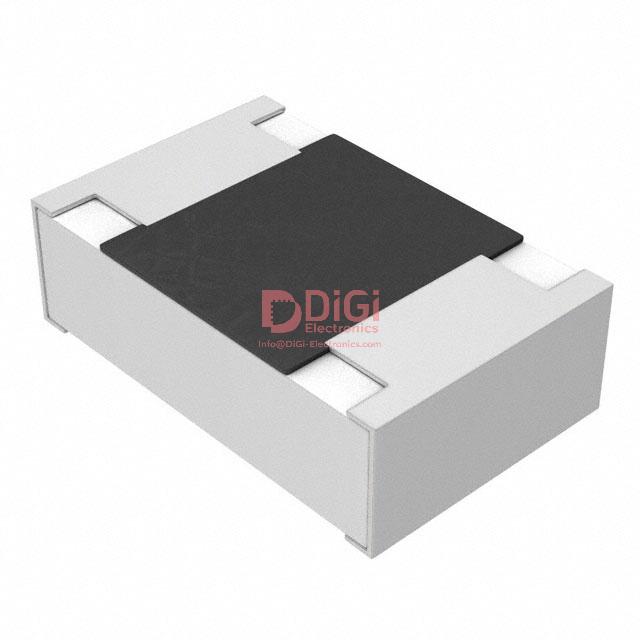

ERJ6ENF6803V The Panasonic Electronic Components ERJ6ENF6803V is a thick film chip resistor with 680 kOhms resistance and ±1% tolerance. It is rated for 1/8W power and features AEC-Q200 automotive qualification.
Mfr Part #:

ERJ6ENF6803V

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ERJ6ENF6803V is a thick film chip resistor with 680 kOhms resistance and ±1% tolerance. It is rated for 1/8W power and features AEC-Q200 automotive qualification.
✓ Total Stock: 109 pcs
$ Price Range: $0.05

ERJ6ENF6803V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
109 pcs
On Request
109 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERJ6ENF6803V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Operating Temperature
Power Rating
Resistance
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

ERJ6ENF6803V Description

Short technical summary and product information.

This ERJ6ENF6803V from Panasonic Electronic Components is a surface mount chip resistor designed for demanding applications. It features a resistance value of 680 kOhms with a tight tolerance of ±1%, ensuring precise circuit performance.



The resistor is rated for a power dissipation of 0.125W (1/8W) and is constructed using thick film technology. It operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C.



Designed for automotive applications, this component meets the AEC-Q200 standard. It comes in an 0805 (2012 Metric) package and is supplied on tape and reel for automated assembly processes.

ERJ6ENF6803V Quick Information

Product Type: Chip Resistor - Surface Mount
Series: ERJ-6EN
Canonical Name: ERJ6ENF6803V Thick Film Chip Resistor 680 kOhms ±1% 1/8W SMD AEC-Q200
Subcategory: Surface Mount

ERJ6ENF6803V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERJ6ENF6803V Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERJ6ENF6803V Features

  • 680 kOhms resistance with ±1% tolerance.
  • Rated for 0.125W (1/8W) power dissipation.
  • Thick film construction for reliability.
  • AEC-Q200 automotive qualification.
  • 0805 (2012 Metric) surface mount package.

ERJ6ENF6803V Applications

  • Suitable for automotive circuits.
  • Ideal for general purpose applications.
  • Used in electronic control modules.
  • Applicable in signal conditioning.

ERJ6ENF6803V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERJ6ENF6803V?

680 kOhms.

What is the tolerance of this resistor?

±1%.

What is the power rating of the ERJ6ENF6803V?

0.125W (1/8W).

What is the temperature coefficient of this resistor?

±100 ppm/°C.

What package size is the ERJ6ENF6803V?

0805 (2012 Metric).

What is the operating temperature range?

-55°C to +155°C.

Is this resistor automotive qualified?

Yes, it is AEC-Q200 qualified.
