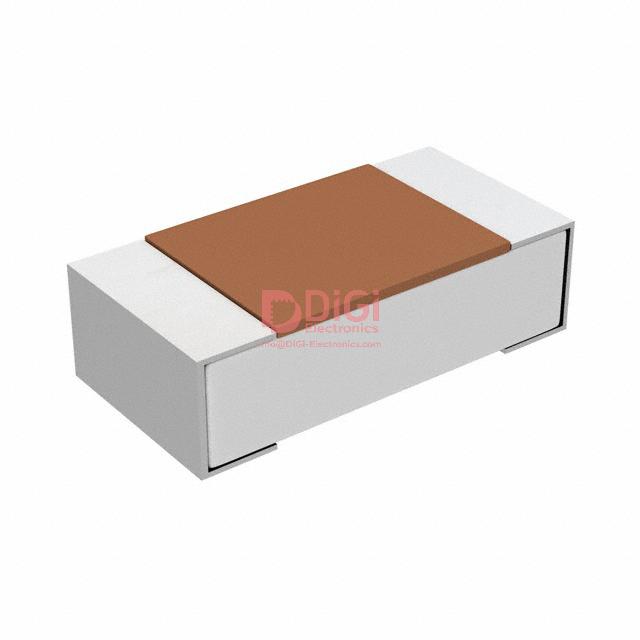

ERJ-S03J750V The Panasonic Electronic Components ERJ-S03J750V is a surface mount chip resistor with 75 Ohms resistance and a ±5% tolerance. It is rated for 0.1W and comes in an 0603 package.
Mfr Part #:

ERJ-S03J750V

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ERJ-S03J750V is a surface mount chip resistor with 75 Ohms resistance and a ±5% tolerance. It is rated for 0.1W and comes in an 0603 package.
✓ Total Stock: 1,780 pcs
$ Price Range: $0.05

ERJ-S03J750V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,780 pcs
On Request
1780 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERJ-S03J750V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERJ-S03J750V Description

Short technical summary and product information.

This Panasonic Electronic Components ERJ-S03J750V is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 75 Ohms with a tight tolerance of ±5%, ensuring accurate circuit performance.



The resistor is rated for a power of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C. Its thick film composition contributes to its reliability.



Packaged in a compact 0603 (1608 Metric) case, this component is suitable for automated assembly processes. The dimensions are 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It has 2 terminations.



Key features include its Anti-Sulfur property and AEC-Q200 qualification, making it suitable for automotive applications. The RoHS 3 compliant status indicates adherence to environmental regulations.

ERJ-S03J750V Quick Information

Product Type: Chip Resistor - Surface Mount
Canonical Name: Panasonic Electronic Components ERJ-S03J750V Chip Resistor - Surface Mount 75 Ohm ±5% 0.1W 0603
Subcategory: Surface Mount

ERJ-S03J750V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERJ-S03J750V Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERJ-S03J750V Features

  • 75 Ohms resistance with ±5% tolerance.
  • 0.1W power rating in a 0603 package.
  • Operates from -55°C to 155°C.
  • Features anti-sulfur and AEC-Q200 qualification.
  • RoHS 3 compliant for environmental standards.

ERJ-S03J750V Applications

  • Suitable for automotive applications.
  • Ideal for general purpose circuit design.
  • Used in compact electronic devices.
  • Reliable for harsh environment use.

ERJ-S03J750V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERJ-S03J750V?

The resistance value is 75 Ohms.

What is the tolerance of the ERJ-S03J750V chip resistor?

The tolerance is ±5%.

What is the power rating for the ERJ-S03J750V?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the ERJ-S03J750V available in?

It is available in the 0603 (1608 Metric) package size.

Does the ERJ-S03J750V meet automotive standards?

Yes, it features Automotive AEC-Q200 qualification.
