Mfr Part #:

ERJ-S03J271V

Mfr Name: Panasonic Electronic Components

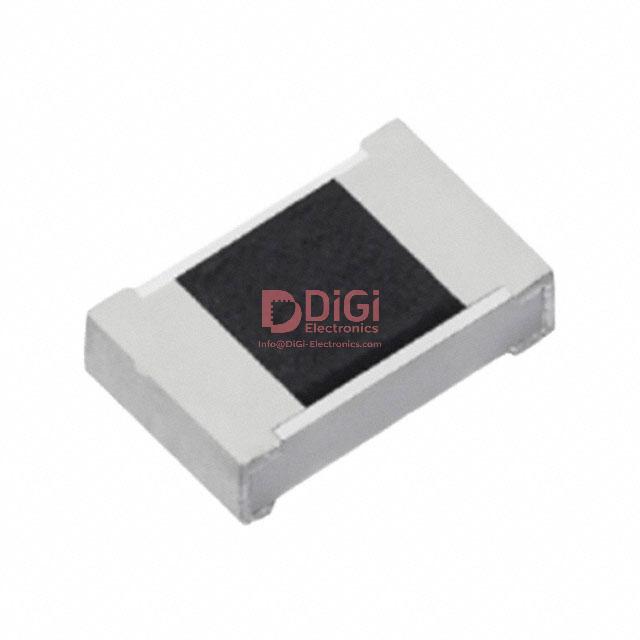

This Panasonic Electronic Components ERJ-3GEYJ271V is a thick film chip resistor with a resistance of 270 Ohms and a tolerance of ±5%. It has a power rating of 0.1W.

✓ Total Stock: 1,500 pcs

$ Price Range: $0.05

ERJ-S03J271V Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	1,500 pcs On Request	1500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ERJ-S03J271V Description

Short technical summary and product information.

The Panasonic Electronic Components ERJ-3GEYJ271V is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 270 Ohms with a tight tolerance of ±5% and a power rating of 0.1W (1/10W).

Constructed with thick film technology, this resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±200ppm/°C. It is housed in a compact 0603 (1608 Metric) package, making it suitable for high-density circuit designs.

This component is also rated AEC-Q200 and includes features like anti-sulfur properties, indicating its suitability for automotive applications. The operating temperature range and robust construction ensure reliable performance in demanding environments.

Designed for surface mounting, the ERJ-3GEYJ271V offers ease of integration into automated manufacturing processes. Its specifications make it a versatile choice for signal conditioning, filtering, and current limiting in a wide array of electronic devices.

ERJ-S03J271V Quick Information

Product Type: Chip Resistor

Series: ERJ-3G

Canonical Name: Panasonic Electronic Components ERJ-3GEYJ271V Thick Film Chip Resistor, 270 Ohm, 5% Tolerance, 0.1W

Subcategory: Surface Mount

ERJ-S03J271V Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ERJ-S03J271V Estimated Pricing

Qty	Low	High
1+	$0.05	$0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERJ-S03J271V Features

270 Ohm resistance with 5% tolerance.
0.1W power rating in 0603 package.
Thick film construction for stability.
Automotive AEC-Q200 qualified.
Wide operating temperature range.

ERJ-S03J271V Applications

Suitable for automotive applications.
Ideal for general electronic circuits.
Used in signal conditioning.
Effective for current limiting.

ERJ-S03J271V FAQs

6 frequently asked questions generated from this part’s specifications.

What is the resistance value of the ERJ-3GEYJ271V chip resistor?

The resistance value is 270 Ohms.

What is the tolerance of the ERJ-3GEYJ271V chip resistor?

The tolerance is ±5%.

What is the power rating of the ERJ-3GEYJ271V chip resistor?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for the ERJ-3GEYJ271V chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the ERJ-3GEYJ271V chip resistor available in?

The chip resistor is available in the 0603 (1608 Metric) package size.

Does the ERJ-3GEYJ271V chip resistor meet automotive standards?

Yes, it is rated AEC-Q200 and features anti-sulfur properties.

Category	Chip Resistor - Surface Mount
Manufacturer Name	Panasonic Electronic Components
Automotive Grade	Yes
Composition	Thick Film
Features	Anti-Sulfur, Automotive AEC-Q200
Height	0.55mm (0.022")
Length	1.60mm (0.063")
Number of Terminations	2
Operating Temperature	-55°C ~ 155°C
Power (Watts)	0.1W, 1/10W
Ratings	AEC-Q200
Resistance	270 Ω
Storage Temperature	°C ~ °C
Supplier Device Package	0603
Tape & Reel	Tape & Reel (TR)
Temperature Coefficient	±200ppm/°C
Tolerance	±5%
Width	0.80mm (0.031")
