| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
$0.05
|
60 pcs |
$0.05
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

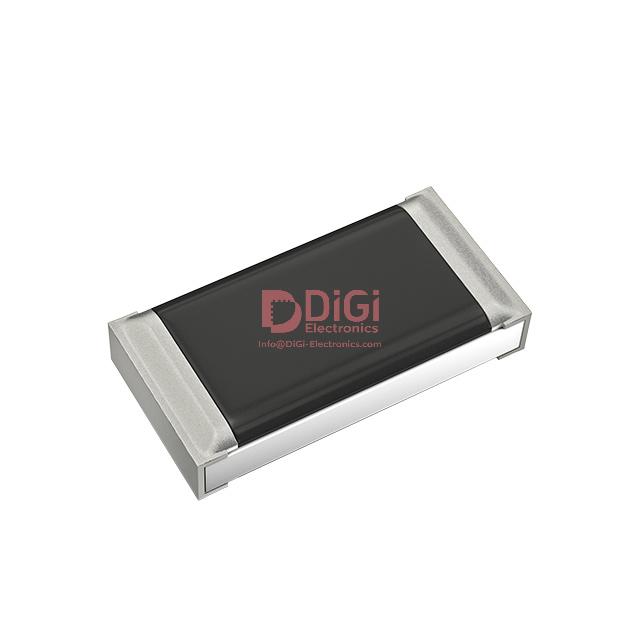

The Panasonic Electronic Components ERJ-PA3F2701V is a surface mount chip resistor designed for demanding applications. It offers a resistance value of 2.7 kΩ with a tight tolerance of ±1% and a power rating of 0.333W (1/3W).
This resistor operates within a wide temperature range of -55°C to 155°C and features a temperature coefficient of ±100ppm/°C. Its thick film composition and automotive AEC-Q200 rating indicate suitability for harsh environments and automotive applications. The component is housed in a compact 0402 (1005 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm.
Key features include pulse withstanding capability, making it robust for applications with transient voltage spikes. The 0402 package size is standard for surface mount assembly, facilitating automated manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.7 kΩ.
The tolerance is ±1%.
The power rating is 0.333W, or 1/3W.
The operating temperature range is -55°C to 155°C.
It comes in a 0402 (1005 Metric) package.
Yes, it features Automotive AEC-Q200 rating.
