| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

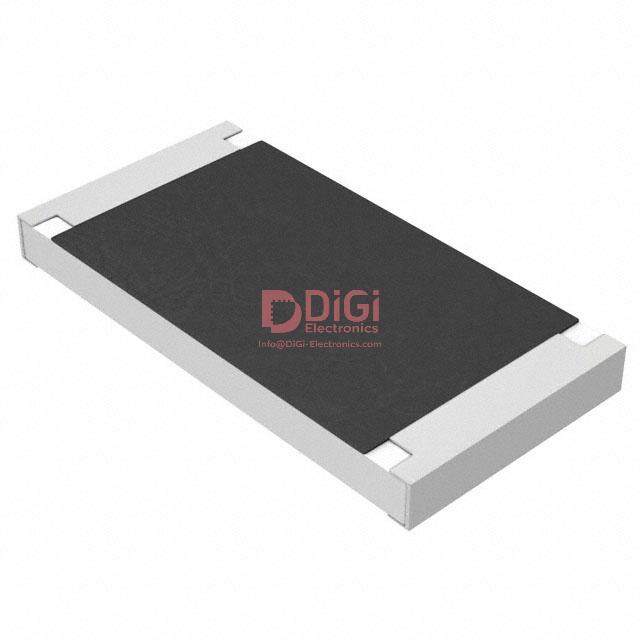

This Panasonic Electronic Components ERJ-P03F8060V is a surface-mount chip resistor designed for demanding applications. It features a thick film composition and a resistance value of 806 Ohms with a tight tolerance of ±1%. The power rating is 1/5W, suitable for various electronic circuits.
The operating temperature range is -55°C to 155°C, and it is rated AEC-Q200, indicating its suitability for automotive and other harsh environments. The component comes in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm.
Key electrical characteristics include a temperature coefficient of ±200ppm/°C and two terminations. The pulse withstanding capability makes it robust for applications with transient voltage spikes. This resistor is compliant with RoHS3 standards and has an MSL 1 rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 806 Ohms.
The tolerance is ±1%.
The power rating is 1/5W (0.2W).
The operating temperature range is -55°C to 155°C.
The resistor is in a 0603 (1608 Metric) package.
Yes, it is rated AEC-Q200.
