| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
39,860 pcs
$0.20
|
39860 pcs |
$0.20
|
1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage Rating | |
| Width |

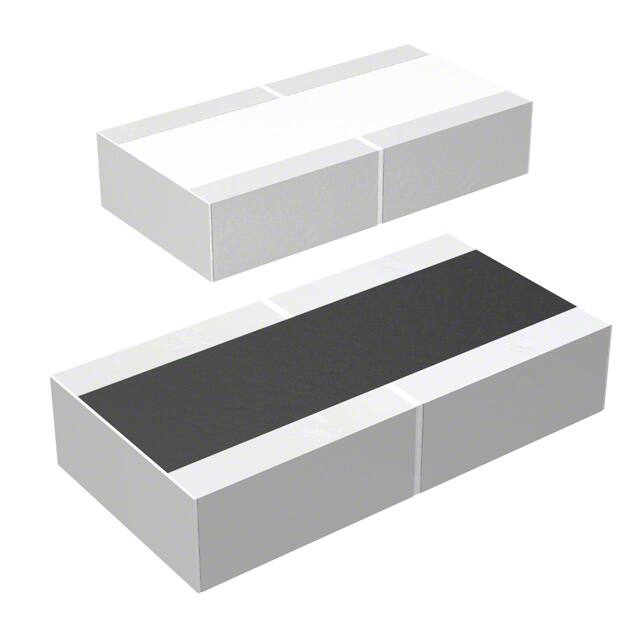

The Panasonic ERJ-B2CFR10V is a high-power chip resistor designed for current sensing applications. It features a resistance value of 0.1 Ohms with a tight tolerance of ±1% and a power rating of 750 mW (3/4 W).
This resistor operates within a wide temperature range of -55°C to 155°C and has a temperature coefficient of 0/+100 PPM/°C. It is constructed using thick film technology and comes in a 1206 (3216 Metric) SMD package, specifically a wide terminal type.
The ERJ-B2CFR10V is qualified to AEC-Q200 standards, making it suitable for automotive applications. It has 2 terminations and a voltage rating of 200V. The component is designed for surface mounting.
Key specifications include its 0.1 Ohm resistance, 1W power rating, ±1% tolerance, and -55°C to +155°C operating temperature. The 1206 package size (1.60mm x 3.20mm) with a height of 0.80mm is ideal for compact designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 0.1 Ohms.
The power rating is 750 mW (3/4 w).
The tolerance is ±1%.
The operating temperature range is -55°C to 155°C.
It is available in a 1206 (3216 Metric) SMD package.
Yes, the ERJ-B2CFR10V resistor is AEC-Q200 qualified.
