| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,990 pcs
|
3990 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

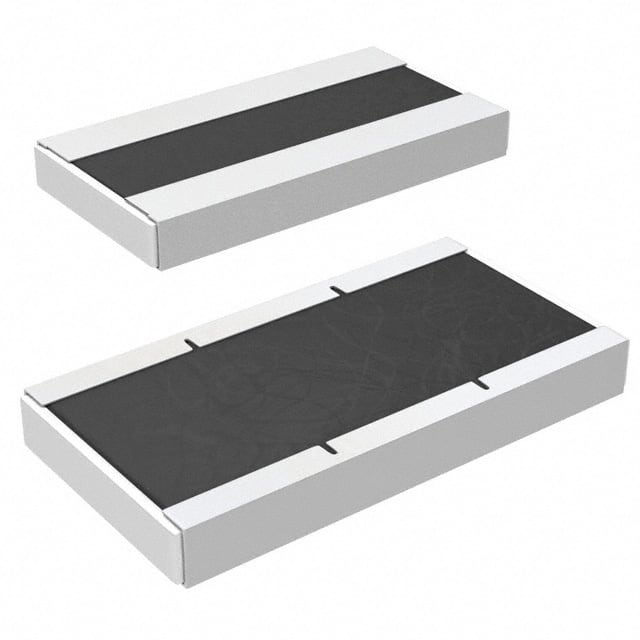

This Panasonic Electronic Components ERJ-B1CFR091U is a surface mount thick film resistor. It features a resistance value of 0.091 Ohms and a power rating of 2 Watts, making it suitable for various power applications. The resistor has a tight tolerance of ±1% and a temperature coefficient of ±150ppm/°C, ensuring stable performance across a wide operating temperature range of -55°C to 155°C.
The component comes in a 2010 (5025 Metric) package size with dimensions of 2.50mm x 5.00mm and a height of 0.75mm. It is designed with two terminations and is suitable for current sensing applications, also featuring Automotive AEC-Q200 compliance.
This part is ideal for designs requiring precise resistance values and reliable operation under demanding conditions. Its surface mount capability allows for efficient integration into automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 0.091 Ohms.
The power rating is 2W.
The tolerance is ±1%.
The temperature coefficient is ±150ppm/°C.
The operating temperature range is -55°C to 155°C.
The dimensions are 2.50mm x 5.00mm with a height of 0.75mm.
The resistor is supplied in a 2010 (5025 Metric) package.
