| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125 pcs
|
125 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

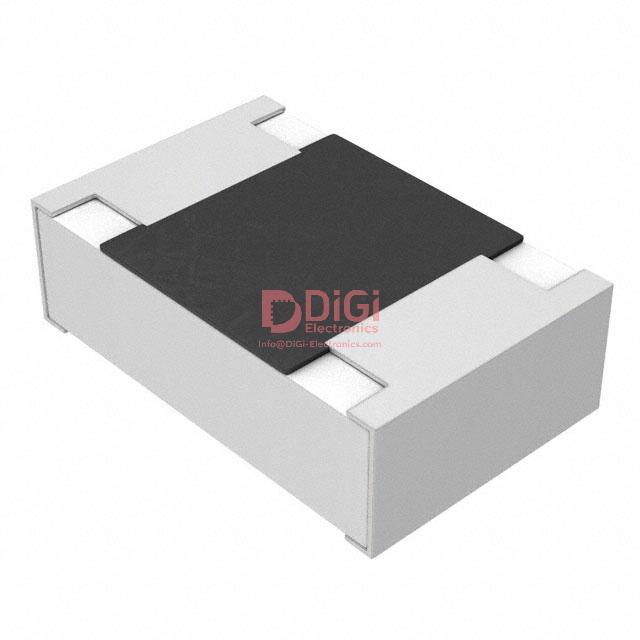

The Panasonic ERJ-3GEYK226V is a surface mount thick film chip resistor designed for various electronic applications. It offers a resistance value of 22 MΩ with a tolerance of ±10%, making it suitable for general-purpose and automotive applications.
This resistor is rated for 0.1W (1/10W) of power and operates within a temperature range of -55°C to 155°C. The temperature coefficient is -400/+150 ppm/°C. It features automotive AEC-Q200 qualification, indicating its suitability for demanding automotive environments.
The component is housed in an 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It has two terminations and is supplied on tape and reel.
Key specifications include its thick film composition, AEC-Q200 rating, and operating temperature range, making it a reliable choice for circuit design.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22 MΩ.
The tolerance is ±10%.
The power rating is 0.1W, or 1/10W.
The operating temperature range is -55°C to 155°C.
It uses the 0603 (1608 Metric) package size.
Yes, it features Automotive AEC-Q200 qualification.
