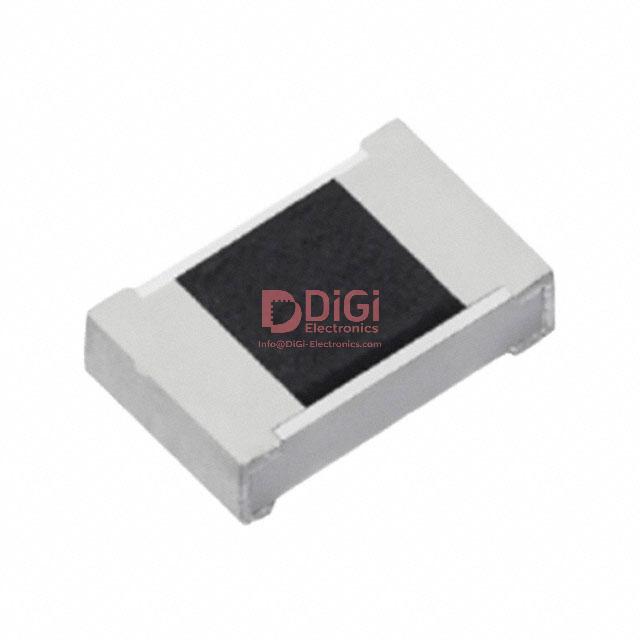

ERJ-3EKF7503V The Panasonic ERJ-3EKF7503V is a surface mount chip resistor with a resistance of 750 kOhms and ±1% tolerance. It features a 0.1W power rating and is AEC-Q200 qualified.
Mfr Part #:

ERJ-3EKF7503V

Available from 3 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic ERJ-3EKF7503V is a surface mount chip resistor with a resistance of 750 kOhms and ±1% tolerance. It features a 0.1W power rating and is AEC-Q200 qualified.
✓ Total Stock: 204 pcs
$ Price Range: $0.05

ERJ-3EKF7503V Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
97 pcs
On Request
97 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
97 pcs
On Request
97 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERJ-3EKF7503V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Lead Style
Operating Temperature
Power Rating
Resistance
SVHC Present
Storage Temperature
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

ERJ-3EKF7503V Description

Short technical summary and product information.

This Panasonic ERJ-3EKF7503V is a high-quality surface mount chip resistor designed for demanding applications. It offers a precise resistance value of 750 kOhms with a tight tolerance of ±1%, ensuring reliable performance in electronic circuits.



The resistor has a power rating of 0.1W (1/10W) and is constructed with thick film technology. It operates within a wide temperature range of -55°C to 155°C, making it suitable for various environmental conditions. The component is housed in a compact 0603 (1608 Metric) package, ideal for space-constrained designs.



Designed for automotive applications, this chip resistor meets the AEC-Q200 standard, indicating its suitability for harsh environments and stringent quality requirements. Its robust construction and reliable electrical characteristics make it a dependable choice for signal processing, filtering, and power management circuits.

ERJ-3EKF7503V Quick Information

Product Type: Chip Resistor - Surface Mount
Series: ERJ-3EK
Canonical Name: Panasonic Electronic Components ERJ-3EKF7503V Chip Resistor - Surface Mount
Subcategory: Surface Mount

ERJ-3EKF7503V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ERJ-3EKF7503V Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERJ-3EKF7503V Features

  • 750 kOhms resistance with ±1% tolerance.
  • 0.1W power rating in 0603 package.
  • Thick film technology for stability.
  • Wide operating temperature range.
  • Automotive AEC-Q200 qualified.

ERJ-3EKF7503V Applications

  • Ideal for automotive electronics.
  • Suitable for signal filtering.
  • Used in power management circuits.
  • General purpose circuit applications.

ERJ-3EKF7503V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERJ-3EKF7503V?

The ERJ-3EKF7503V has a nominal resistance of 750 kOhms.

What is the tolerance of this resistor?

The tolerance is ±1%.

What is the power rating of the ERJ-3EKF7503V?

The power rating is 0.1W (1/10W).

What is the temperature coefficient of this resistor?

The temperature coefficient is ±100ppm/°C.

What is the operating temperature range?

The operating temperature range is -55°C to +155°C.

What package does the ERJ-3EKF7503V come in?

It comes in a 0603 (1608 Metric) surface mount package.

Is the ERJ-3EKF7503V suitable for automotive applications?

Yes, it is AEC-Q200 qualified for automotive applications.
