| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Lead Spacing | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

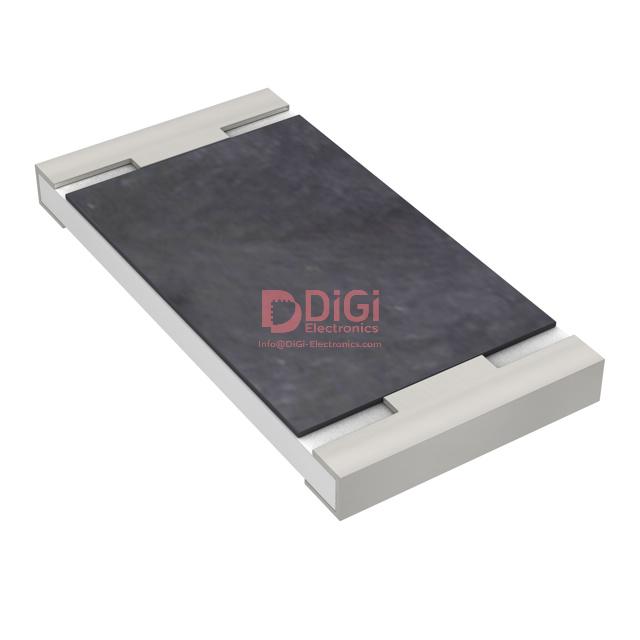

This Panasonic ERJ-1TYJ683U is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 68 kOhms with a tolerance of ±5%, ensuring accuracy in circuit performance. The resistor is capable of handling up to 1W of power and operates within a temperature range of -55°C to 155°C.
Constructed with thick film technology, this component is built for reliability and durability. It meets AEC-Q200 standards, making it suitable for automotive applications. The package size is 2512 (6432 Metric), with dimensions of 6.40mm in length and 3.20mm in width. The operating temperature coefficient is ±200ppm/°C.
The ERJ-1TYJ683U is designed for surface mounting, requiring appropriate soldering techniques for secure integration into printed circuit boards. Its robust construction and specified features make it a dependable choice for engineers designing power-sensitive or automotive-related circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 68 kOhms.
The tolerance is ±5%.
The power rating is 1W.
The operating temperature range is -55°C to 155°C.
The package type is 2512 (6432 Metric).
Yes, it features Automotive AEC-Q200 qualification.
