| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,840 pcs
|
3840 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
967 pcs
|
967 pcs | On Request | 1 | On Request | On Request | 43104 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

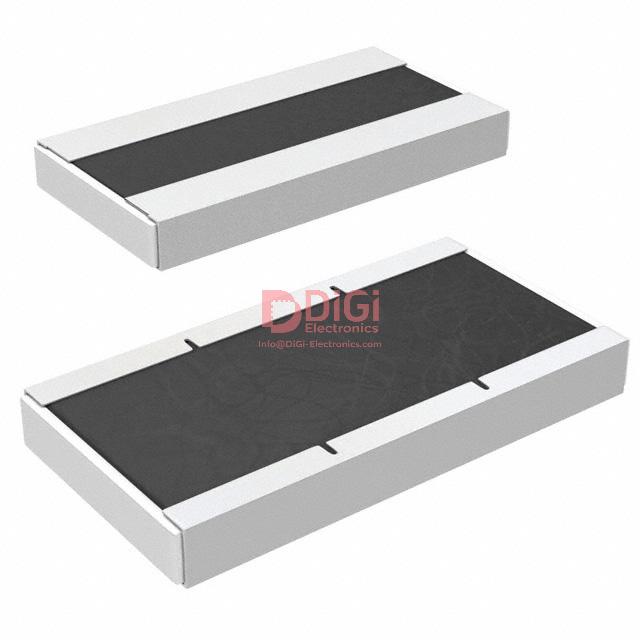

This Panasonic ERJ-1TYJ5R6U is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 5.6 Ohms with a tolerance of ±5%, making it suitable for general-purpose and current sensing applications.
The resistor is rated for 1W of power and operates within a temperature range of -55°C to 155°C. Its thick film composition ensures reliable performance. The component is built to automotive standards, carrying the AEC-Q200 qualification.
Packaged in a 2512 (6432 Metric) case, this component is designed for surface mounting. Its dimensions are 6.40mm in length and 3.20mm in width, with a height of 0.70mm. The device has 2 terminations and a temperature coefficient of -100/+600ppm/°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance is 5.6 Ohms.
The tolerance is ±5%.
The power rating is 1W.
The operating temperature range is -55°C to 155°C.
It is available in the 2512 package size.
Yes, it features Automotive AEC-Q200 qualification.
