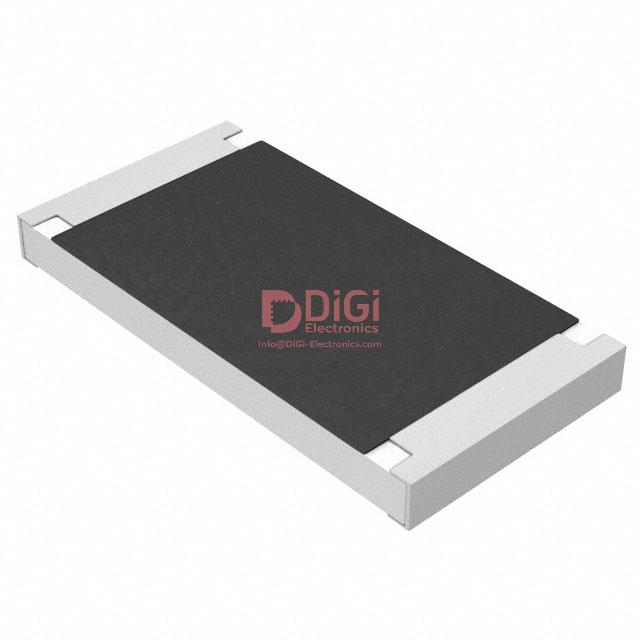

ERJ-1TYJ470U The Panasonic ERJ-1TYJ470U is a thick film chip resistor with a resistance of 47 Ohms and a tolerance of ±5%. It is rated for 1W of power and comes in a 2512 package.
Mfr Part #:

ERJ-1TYJ470U

Available from 2 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic ERJ-1TYJ470U is a thick film chip resistor with a resistance of 47 Ohms and a tolerance of ±5%. It is rated for 1W of power and comes in a 2512 package.
✓ Total Stock: 3,799 pcs
$ Price Range: $0.05

ERJ-1TYJ470U Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3,715 pcs
On Request
3715 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
84 pcs
On Request
84 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERJ-1TYJ470U Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERJ-1TYJ470U Description

Short technical summary and product information.

This Panasonic ERJ-1TYJ470U is a surface mount chip resistor designed for demanding applications. It features a resistance value of 47 Ohms with a tight tolerance of ±5% and a power rating of 1W. The thick film composition ensures reliability.



The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±200ppm/°C. Its package size is 2512 (6432 Metric), with dimensions of 6.40mm in length, 3.20mm in width, and 0.70mm in height. It has 2 terminations.



This component is qualified for automotive applications, meeting the AEC-Q200 standard. It is supplied in Tape & Reel packaging, suitable for automated assembly processes.

ERJ-1TYJ470U Quick Information

Product Type: Chip Resistor - Surface Mount
Series: ERJ-1T
Canonical Name: ERJ-1TYJ470U Thick Film Chip Resistor 47 Ohm ±5% 1W 2512
Subcategory: Surface Mount

ERJ-1TYJ470U Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERJ-1TYJ470U Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERJ-1TYJ470U Features

  • 47 Ohm resistance with ±5% tolerance.
  • 1W power rating in a 2512 package.
  • Thick film composition for reliability.
  • Automotive AEC-Q200 qualified.
  • Wide operating temperature range.

ERJ-1TYJ470U Applications

  • Used in automotive electronic circuits
  • Suitable for signal filtering applications
  • Ideal for current limiting in power supplies
  • Fits in compact circuit designs

ERJ-1TYJ470U FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance of the ERJ-1TYJ470U?

The resistance of the ERJ-1TYJ470U is 47 Ohms.

What is the tolerance of the ERJ-1TYJ470U chip resistor?

The tolerance for the ERJ-1TYJ470U is ±5%.

What is the power rating of the ERJ-1TYJ470U?

The power rating for this component is 1W.

What is the operating temperature range for the ERJ-1TYJ470U?

The operating temperature range is -55°C to 155°C.

What package size is the ERJ-1TYJ470U available in?

The ERJ-1TYJ470U comes in a 2512 (6432 Metric) package.

Does the ERJ-1TYJ470U meet automotive standards?

Yes, the ERJ-1TYJ470U features Automotive AEC-Q200 qualification.
