| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
778 pcs
|
778 pcs | On Request | 1 | On Request | On Request | 0704 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Lead Spacing | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

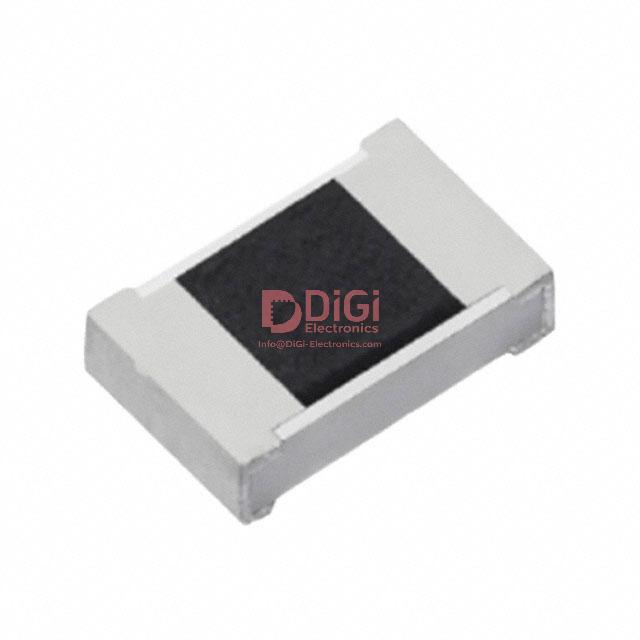

This ERJ-1TYJ220U is a surface mount chip resistor manufactured by Panasonic Electronic Components. It is constructed with thick film technology and designed for reliable performance in demanding applications, indicated by its Automotive AEC-Q200 rating.
The resistor offers a resistance value of 22 Ohms with a tolerance of ±5%, making it suitable for general-purpose circuit applications where precise resistance is not critical. It is capable of handling up to 1W of power and operates within a temperature range of -55°C to 155°C. The component features a temperature coefficient of ±200ppm/°C.
Packaged in a 2512 (6432 Metric) case, this component is designed for surface mounting. Its dimensions are 6.40mm in length, 3.20mm in width, and 0.70mm in height. The part has 2 terminations and is supplied on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22 Ohms.
The tolerance is ±5%.
The power rating is 1W.
The operating temperature range is -55°C to 155°C.
It is available in the 2512 (6432 Metric) package size.
