| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
485 pcs
|
485 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

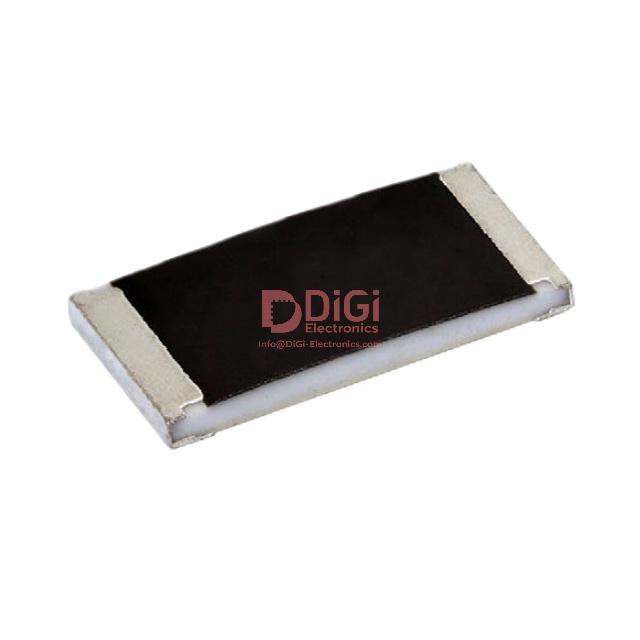

The ERJ-1TNF8203U is a surface mount chip resistor from Panasonic Electronic Components. It features a resistance value of 820 kOhms with a tight tolerance of ±1%. This resistor is designed to handle 1W of power and operates within a temperature range of -55°C to 155°C.
Constructed with thick film technology, the ERJ-1TNF8203U is suitable for various applications, including those requiring automotive AEC-Q200 compliance. Its package size is 2512 (6432 Metric), with dimensions of 6.40mm L x 3.20mm W x 0.70mm H. The component has 2 terminations.
This resistor is designed for surface mounting, making it ideal for automated assembly processes. Its robust construction and automotive qualification make it a reliable choice for demanding electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 820 kOhms.
The tolerance is ±1%.
The power rating is 1.5W.
The operating temperature range is -55°C to 155°C.
The package size is 2512 (6432 Metric).
Yes, it features Automotive AEC-Q200 qualification.
