| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
550 pcs
|
550 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

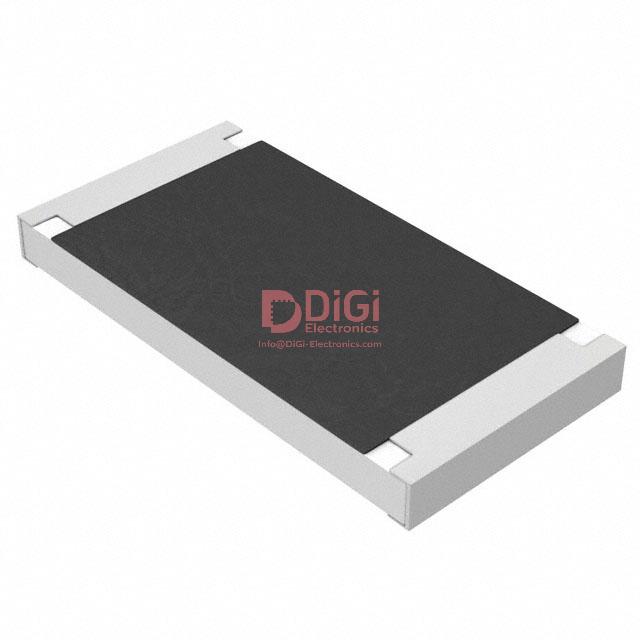

This Panasonic ERJ-1TNF3321U is a surface mount chip resistor designed for demanding applications. It offers a precise resistance value of 3.32 kOhms with a tight tolerance of ±1%, ensuring accuracy in circuit performance. The resistor has a power rating of 1W, making it suitable for moderate power dissipation.
Featuring a thick film composition, this component is built for reliability. It operates within a wide temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. The chip resistor is qualified for automotive applications, meeting the AEC-Q200 standard.
The package size is 2512 (6432 Metric), with dimensions of 6.40mm in length and 3.20mm in width. Its height is 0.70mm. The component has 2 terminations and is supplied in a Tape & Reel (TR) package, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ERJ-1TNF3321U chip resistor has a resistance value of 3.32 kOhms.
The tolerance of the ERJ-1TNF3321U resistor is ±1%.
The ERJ-1TNF3321U chip resistor has a power rating of 1W.
The ERJ-1TNF3321U operates within a temperature range of -55°C to 155°C.
The ERJ-1TNF3321U resistor is supplied in a 2512 (6432 Metric) package.
Yes, the ERJ-1TNF3321U features Automotive AEC-Q200 qualification.
