| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | 15/16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

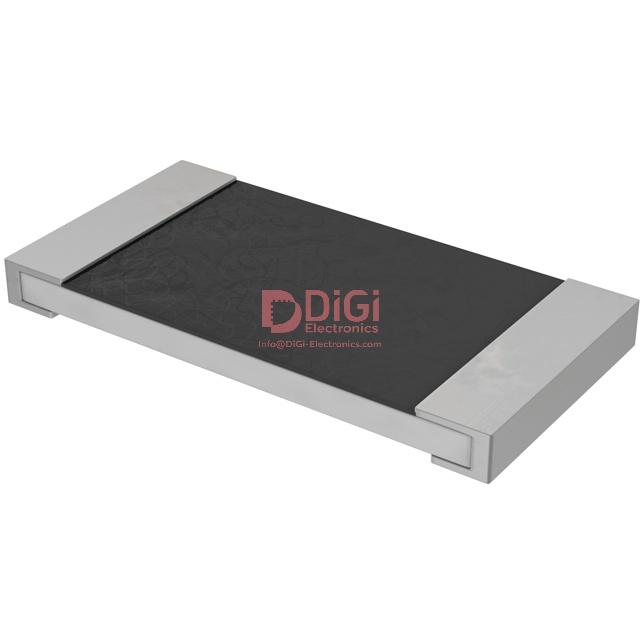

This ERJ-1TNF2550U is a surface mount chip resistor manufactured by Panasonic Electronic Components. It is designed for applications requiring precise resistance values, featuring 255 Ohms with a tight tolerance of ±1%. The resistor has a power rating of 1W, making it suitable for moderate power dissipation.
Constructed with thick film technology, this component operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. It meets the Automotive AEC-Q200 standard, indicating its suitability for automotive applications. The package size is 2512 (6432 Metric), with dimensions of 6.40mm x 3.20mm and a height of 0.70mm.
The component is supplied in Tape & Reel packaging, facilitating automated assembly processes. Its robust construction and automotive qualification make it a reliable choice for various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 255 Ohms.
The tolerance is ±1%.
The power rating is 1W.
The operating temperature range is -55°C to 155°C.
The package size is 2512 (6432 Metric).
Yes, it features Automotive AEC-Q200 qualification.
