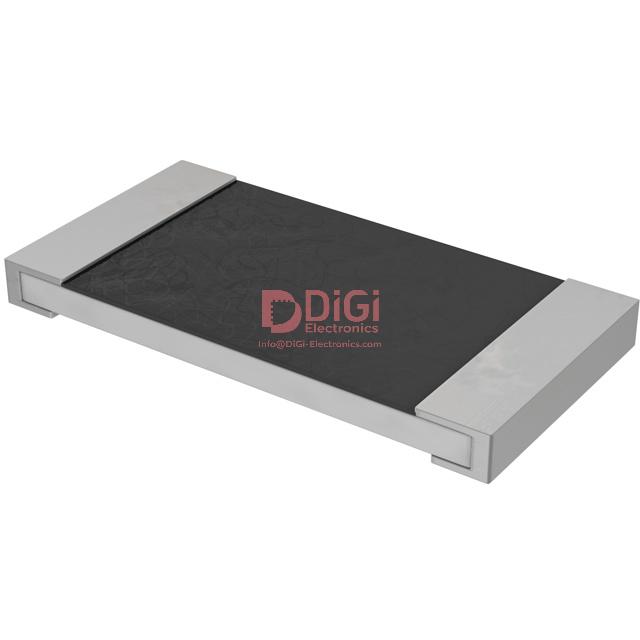

ERJ-1TNF1240U The Panasonic ERJ-1TNF1240U is a surface mount chip resistor with 124 Ohms resistance and a 1% tolerance. It is rated for 1W of power and features AEC-Q200 compliance.
Mfr Part #:

ERJ-1TNF1240U

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic ERJ-1TNF1240U is a surface mount chip resistor with 124 Ohms resistance and a 1% tolerance. It is rated for 1W of power and features AEC-Q200 compliance.
✓ Total Stock: 2,860 pcs
$ Price Range: $0.05

ERJ-1TNF1240U Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,860 pcs
On Request
2860 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERJ-1TNF1240U Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Storage Temperature
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERJ-1TNF1240U Description

Short technical summary and product information.

This Panasonic ERJ-1TNF1240U is a thick film chip resistor designed for surface mount applications. It offers a resistance value of 124 Ohms with a tight tolerance of ±1% and a power rating of 1W.



The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. It is built with a thick film composition and meets automotive AEC-Q200 standards, making it suitable for demanding environments.



The component comes in a 2512 (6432 Metric) package with dimensions of 6.40mm L x 3.20mm W and a height of 0.70mm. It has two terminations and is supplied on tape and reel.

ERJ-1TNF1240U Quick Information

Product Type: Chip Resistor - Surface Mount
Canonical Name: ERJ-1TNF1240U Thick Film Chip Resistor 124 Ohm 1% 1W 2512
Subcategory: Chip Resistor - Surface Mount

ERJ-1TNF1240U Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERJ-1TNF1240U Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERJ-1TNF1240U Features

  • 124 Ohms resistance with 1% tolerance.
  • 1W power rating for demanding applications.
  • Operates from -55°C to 155°C.
  • AEC-Q200 automotive qualified.
  • Thick film composition for reliability.

ERJ-1TNF1240U Applications

  • Suitable for automotive circuits.
  • Ideal for industrial control systems.
  • Used in power supply filtering.
  • Applicable in signal conditioning.

ERJ-1TNF1240U FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERJ-1TNF1240U?

The resistance value is 124 Ohms.

What is the tolerance of the ERJ-1TNF1240U chip resistor?

The tolerance is ±1%.

What is the power rating for the ERJ-1TNF1240U?

The power rating is 1W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

Does the ERJ-1TNF1240U meet automotive standards?

Yes, it features Automotive AEC-Q200 compliance.

What package size is the ERJ-1TNF1240U resistor?

It is supplied in a 2512 (6432 Metric) package.
