| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Width |

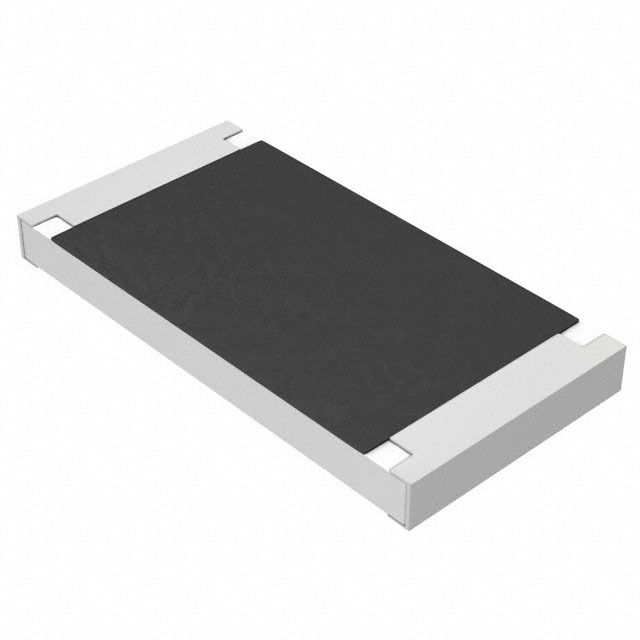

This Panasonic ERJ-1TNF10R0U is a surface mount chip resistor designed for demanding applications. It features a resistance value of 10 Ohms with a tight tolerance of ±1%. The resistor is capable of handling 1W of power and operates within a temperature range of -55°C to 155°C.
With a temperature coefficient of ±100ppm/°C, this component offers stability under varying thermal conditions. The package size is 2512 (6432 Metric), with dimensions of 6.40mm in length and 3.20mm in width. It is constructed with thick film technology and is qualified for automotive applications (AEC-Q200).
The component is supplied in tape and reel packaging, suitable for automated assembly processes. Its robust design and specifications make it suitable for various electronic circuits requiring reliable resistance elements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 Ohms.
The tolerance is ±1%.
The power rating is 1W.
The operating temperature range is -55°C to 155°C.
The package size is 2512 (6432 Metric).
Yes, it features Automotive AEC-Q200 qualification.
