| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

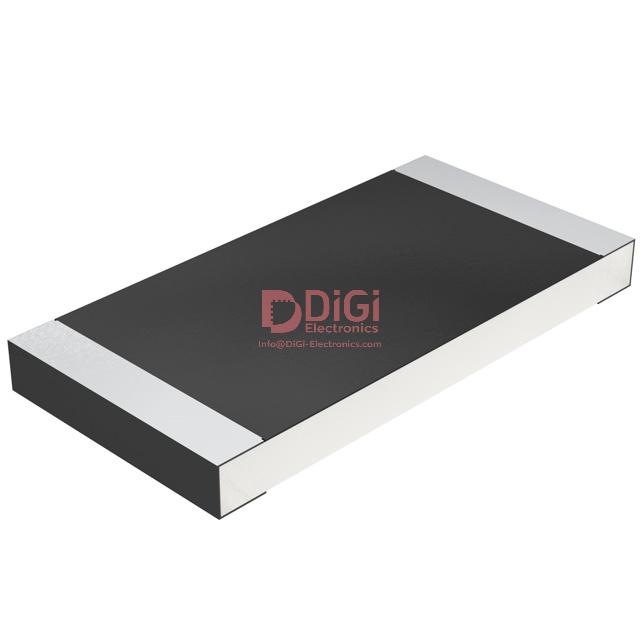

This Panasonic Electronic Components ERJ-1TNF1002U is a surface mount chip resistor designed for various electronic applications. It offers a resistance value of 10 kΩ with a tight tolerance of ±1%. The resistor is capable of handling 1W of power and operates within a temperature range of -55°C to 155°C.
Featuring a thick film composition, this component is built to withstand demanding conditions. It meets Automotive AEC-Q200 standards, indicating its suitability for automotive applications. The chip resistor comes in a 2512 package size, measuring 6.40mm in length and 3.20mm in width, with a height of 0.70mm. Its surface mount design facilitates automated assembly processes.
With a temperature coefficient of ±100ppm/°C, the ERJ-1TNF1002U provides stable performance across varying temperatures. It has 2 terminations and is compliant with RoHS3 standards. The moisture sensitivity level is rated at 1, indicating it is not sensitive to moisture.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 kΩ.
The power rating is 1W.
The tolerance is ±1%.
The operating temperature range is -55°C to 155°C.
It is a 2512 (6432 Metric) surface mount chip resistor.
Yes, it features Automotive AEC-Q200 compliance.
