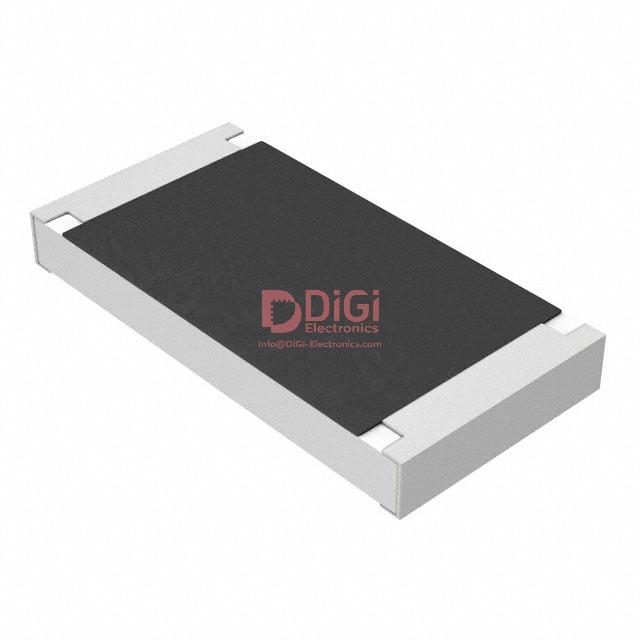

ERJ-12ZYJ563U This Panasonic Electronic Components ERJ-12ZYJ563U is a surface mount chip resistor with a resistance of 56 kOhms and a tolerance of ±5%. It features a power rating of 0.75W.
Mfr Part #:

ERJ-12ZYJ563U

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
This Panasonic Electronic Components ERJ-12ZYJ563U is a surface mount chip resistor with a resistance of 56 kOhms and a tolerance of ±5%. It features a power rating of 0.75W.
✓ Total Stock: 3,540 pcs
$ Price Range: $0.05

ERJ-12ZYJ563U Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3,540 pcs
On Request
3540 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERJ-12ZYJ563U Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERJ-12ZYJ563U Description

Short technical summary and product information.

The ERJ-12ZYJ563U is a surface mount chip resistor from Panasonic Electronic Components. It offers a resistance value of 56 kOhms with a tight tolerance of ±5%. The resistor is rated for 0.75W of power and is constructed using Thick Film technology.



Designed for demanding applications, this component features an operating temperature range of -55°C to 155°C and is qualified to AEC-Q200 standards, making it suitable for automotive use. The package size is 2010 (5025 Metric), with dimensions of 5.00mm in length, 2.50mm in width, and 0.70mm in height. It also includes anti-sulfur properties.



This component is supplied in Tape & Reel packaging, suitable for automated assembly processes. Its robust construction and automotive qualification ensure reliability in various electronic circuits.

ERJ-12ZYJ563U Quick Information

Product Type: Chip Resistor - Surface Mount
Series: ERJ-S1D
Canonical Name: ERJ-12ZYJ563U Thick Film Chip Resistor 56 kOhms ±5% 0.75W AEC-Q200
Subcategory: Surface Mount

ERJ-12ZYJ563U Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERJ-12ZYJ563U Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERJ-12ZYJ563U Features

  • 56 kOhms resistance with ±5% tolerance.
  • 0.75W power rating for demanding applications.
  • AEC-Q200 automotive qualified component.
  • Thick Film construction for reliability.
  • 2010 package size for surface mounting.

ERJ-12ZYJ563U Applications

  • Suitable for automotive electronics.
  • Ideal for general purpose circuits.
  • Used in harsh environmental conditions.
  • Surface mount automated assembly.

ERJ-12ZYJ563U FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERJ-12ZYJ563U?

The resistance value is 56 kOhms.

What is the tolerance of the ERJ-12ZYJ563U chip resistor?

The tolerance is ±5%.

What is the power rating for the ERJ-12ZYJ563U?

The power rating is 0.75W, or 3/4W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What is the package type for the ERJ-12ZYJ563U?

The package type is 2010 (5025 Metric).

Is the ERJ-12ZYJ563U suitable for automotive applications?

Yes, it features Automotive AEC-Q200 qualification and anti-sulfur properties.
