| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
702 pcs
|
702 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

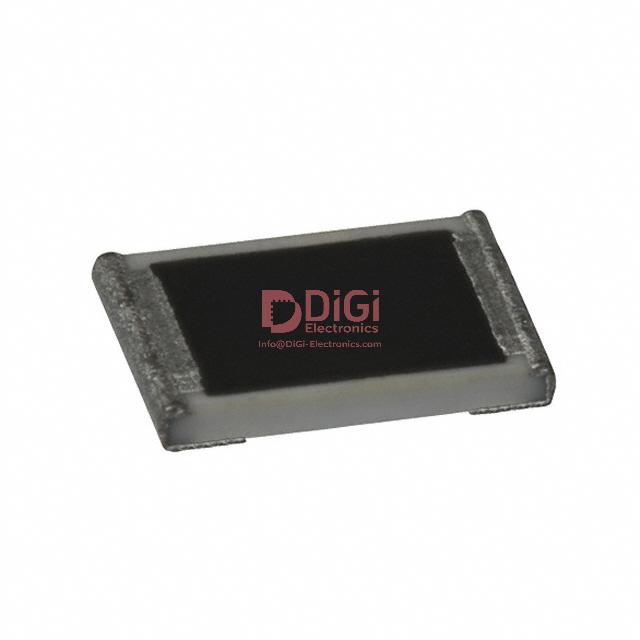

This Panasonic Electronic Components ERJ-12ZYJ392U is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 3.9 kΩ with a tight tolerance of ±5%, ensuring accurate circuit performance.
The resistor is rated for 0.75W of power and has a temperature coefficient of ±200ppm/°C. It operates reliably across a wide temperature range from -55°C to 155°C.
Constructed with thick film technology, this component is suitable for demanding environments, indicated by its Automotive AEC-Q200 qualification. The package size is 2010 (5025 Metric), with dimensions of 5.00mm in length and 2.50mm in width, and a height of 0.70mm.
With 2 terminations, this chip resistor is designed for surface mounting, offering a robust solution for modern electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 3.9 kΩ.
The tolerance is ±5%.
The power rating is 0.75W.
The operating temperature range is -55°C to 155°C.
The package type is 2010 (5025 Metric).
Yes, the ERJ-12ZYJ392U chip resistor is AEC-Q200 qualified.
