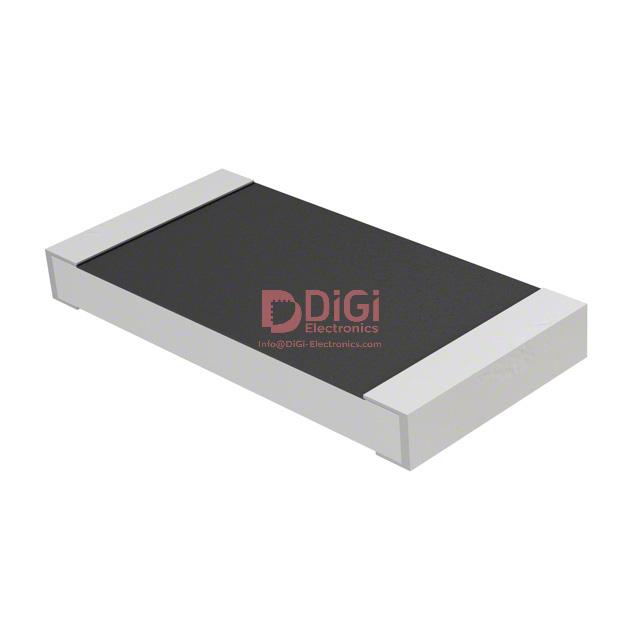

ERJ-12ZYJ300U The Panasonic ERJ-12ZYJ300U is a thick film chip resistor with 30 Ohms resistance and a 5% tolerance. It is rated for 0.75W and operates within a -55°C to 155°C temperature range.
Mfr Part #:

ERJ-12ZYJ300U

Available from 2 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic ERJ-12ZYJ300U is a thick film chip resistor with 30 Ohms resistance and a 5% tolerance. It is rated for 0.75W and operates within a -55°C to 155°C temperature range.
✓ Total Stock: 1,699 pcs
$ Price Range: $0.05

ERJ-12ZYJ300U Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,215 pcs
On Request
1215 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
484 pcs
On Request
484 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERJ-12ZYJ300U Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERJ-12ZYJ300U Description

Short technical summary and product information.

This Panasonic ERJ-12ZYJ300U is a surface mount chip resistor designed for demanding applications. It features a resistance value of 30 Ohms with a tight tolerance of ±5% and a power rating of 0.75W.



The resistor is constructed with thick film technology and is qualified for automotive use under the AEC-Q200 standard. Its operating temperature range spans from -55°C to 155°C, making it suitable for various environmental conditions.



The component comes in a 2010 (5025 Metric) package, measuring 5.00mm in length and 2.50mm in width. It has 2 terminations and a temperature coefficient of ±200ppm/°C.



This part is ideal for general-purpose electronic circuits where reliable performance and automotive-grade quality are required.

ERJ-12ZYJ300U Quick Information

Product Type: Thick Film Chip Resistor
Canonical Name: ERJ-12ZYJ300U Thick Film Chip Resistor
Subcategory: Surface Mount

ERJ-12ZYJ300U Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERJ-12ZYJ300U Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERJ-12ZYJ300U Features

  • 30 Ohm resistance with 5% tolerance.
  • Rated for 0.75W power dissipation.
  • Automotive AEC-Q200 qualified.
  • Operates from -55°C to 155°C.
  • Compact 2010 package size.

ERJ-12ZYJ300U Applications

  • Suitable for automotive circuits.
  • General purpose signal conditioning.
  • Power supply filtering applications.
  • Used in control modules.

ERJ-12ZYJ300U FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERJ-12ZYJ300U?

The resistance value is 30 Ohms.

What is the tolerance of the ERJ-12ZYJ300U chip resistor?

The tolerance is ±5%.

What is the power rating for the ERJ-12ZYJ300U?

The power rating is 0.75W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What package size does the ERJ-12ZYJ300U come in?

It comes in a 2010 (5025 Metric) package.

Is the ERJ-12ZYJ300U AEC-Q200 qualified?

Yes, it features Automotive AEC-Q200 qualification.
