| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
78 pcs
|
78 pcs | On Request | 1 | On Request | On Request | 1619 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

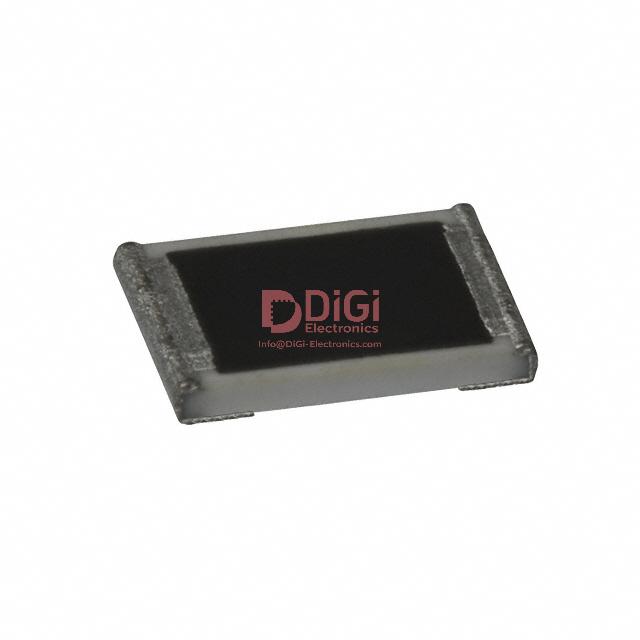

The Panasonic Electronic Components ERJ-12ZYJ102U is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 1 kΩ with a tolerance of ±5% and a power rating of 0.75W.
This resistor is constructed with thick film technology and is suitable for automotive applications, carrying an AEC-Q200 rating. It operates across a wide temperature range from -55°C to 155°C. The component comes in a 2010 package size (5025 Metric).
Key electrical characteristics include a temperature coefficient of ±200ppm/°C. The physical dimensions are 5.00mm in length, 2.50mm in width, and 0.70mm in height. It has 2 terminations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1 kΩ.
The tolerance is ±5%.
The power rating is 0.75W, or 3/4W.
The operating temperature range is -55°C to 155°C.
It comes in a 2010 package size, which is equivalent to 5025 Metric.
Yes, it features Automotive AEC-Q200 qualification.
