| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
740 pcs
|
740 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

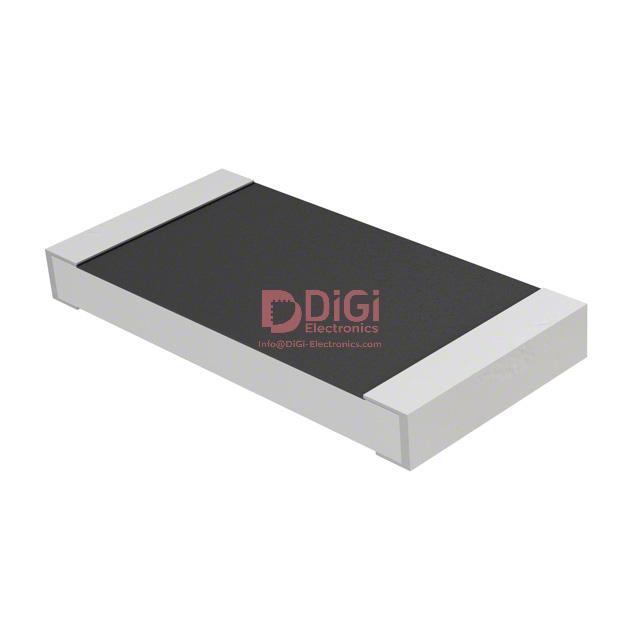

This Panasonic ERJ-12SF30R1U is a surface mount chip resistor belonging to the thick film composition type. It is specified with a resistance value of 30.1 Ohms and a tight tolerance of ±1%. The component is rated for 0.75W of power and operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±100ppm/°C.
The resistor comes in a 2010 (5025 Metric) package, measuring 5.00mm in length and 2.50mm in width, with a height of 0.70mm. It features 2 terminations and is qualified for automotive applications, carrying the AEC-Q200 rating. The packaging is supplied on tape and reel (TR).
This component is suitable for various electronic circuits requiring precise resistance values and reliability, particularly in automotive environments due to its AEC-Q200 qualification. Its surface mount design facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 30.1 Ohms.
The tolerance is ±1%.
The power rating is 0.75W.
The operating temperature range is -55°C to 155°C.
It comes in a 2010 (5025 Metric) package.
Yes, it features Automotive AEC-Q200 qualification.
