| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

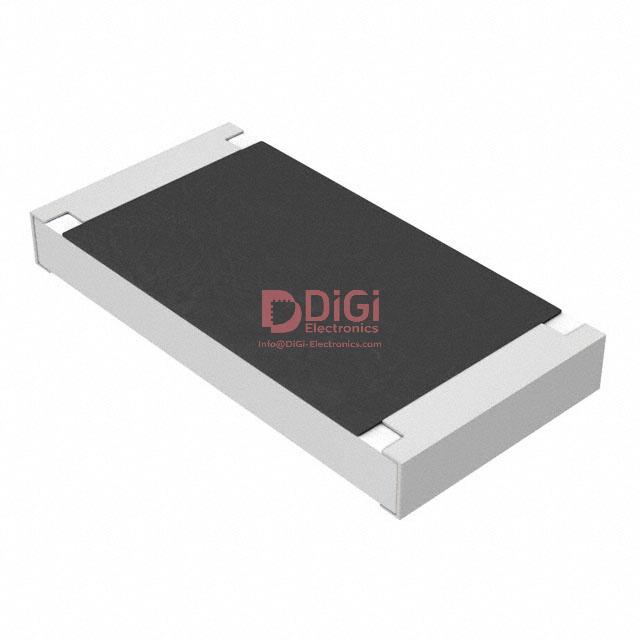

This Panasonic Electronic Components ERJ-12SF3010U is a thick film chip resistor designed for surface mount applications. It offers a resistance value of 301 Ohms with a tight tolerance of ±1% and a power rating of 0.75W.
The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. It is built with a thick film composition and features automotive AEC-Q200 compliance, making it suitable for demanding environments.
The component comes in a 2010 (5025 Metric) package size, measuring 5.00mm in length and 2.50mm in width, with a height of 0.70mm. It has 2 terminations and is supplied on tape and reel.
This part is suitable for various electronic circuits requiring reliable resistance components, particularly in automotive applications due to its AEC-Q200 rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 301 Ohms.
The tolerance is ±1%.
The power rating is 0.75W, or 3/4W.
The operating temperature range is -55°C to 155°C.
It comes in a 2010 (5025 Metric) package.
Yes, it features Automotive AEC-Q200 compliance.
