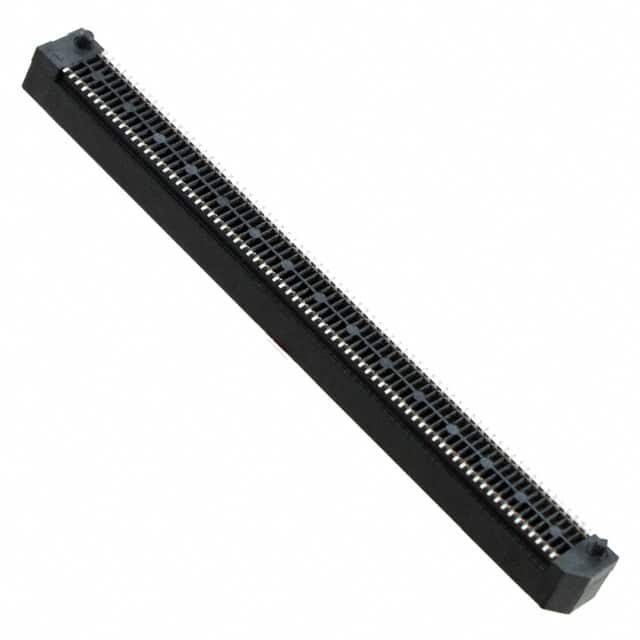

The Samtec ERF8-075-05.0-S-DV-K-TR is a socket from the Edge Rate series, designed for high-speed, high-cycle mezzanine applications. It features 150 positions arranged in 2 rows with a 0.80mm pitch, enabling dense board-to-board connections. The socket is surface mount (SMD) and comes in tape and reel packaging. Contact finish is gold with 30.0µin thickness, ensuring reliable signal integrity. The insulator is black LCP, and terminals are beryllium copper.
Electrical ratings include 1.4A per contact and 225 VAC / 318 VDC voltage rating. Operating temperature range is -55°C to +125°C. The connector includes a board guide and pick-and-place feature for automated assembly. It offers 360° shielding to reduce EMI and supports mated stacking heights of 7mm, 10mm, 13mm, 14mm, and 20mm.
This socket is part of Samtec's Edge Rate system, which provides up to 1.5mm contact wipe for reliable connections. The lead style is 05.0, corresponding to a 5mm stacking height. The part is lead-free solderable and RoHS3 compliant.
150 positions arranged in 2 rows.
0.80mm (0.031").
1.4A.
225 VAC / 318 VDC.
Surface mount (SMD).
-55°C to +125°C.
Gold with 30.0µin (0.76µm) thickness.
