| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
380 pcs
|
380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

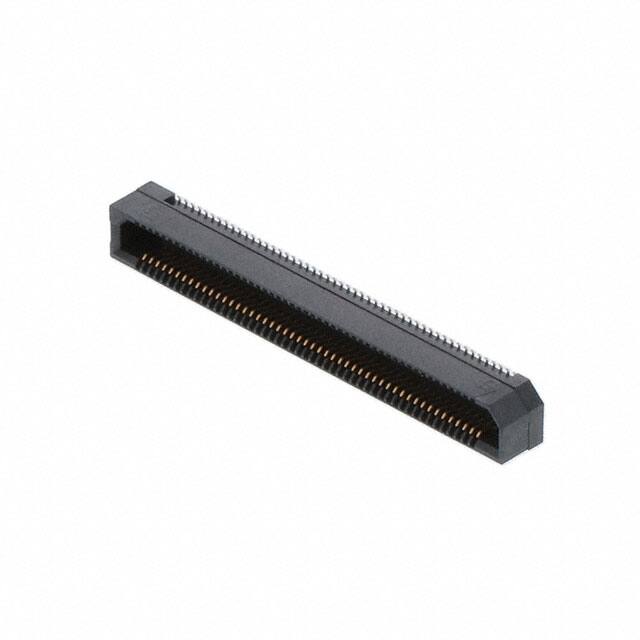

The Samtec ERF8-050-05.0-S-DV-TR is a 100-position socket connector featuring outer shroud contacts in a 2-row configuration with 0.80mm pitch. It is designed for surface mount assembly and has a height above board of 5.33mm. This connector supports mated stacking heights of 7mm, 10mm, 13mm, 14mm, and 20mm, making it suitable for a range of mezzanine board stacking applications.
Key mechanical features include a board guide for improved alignment during assembly. The contacts are finished with gold to a thickness of 0.76µm, ensuring reliable electrical performance. The part is packaged in tape and reel for automated placement.
Compliance data indicates RoHS3 compliance, REACH unaffected status, and MSL level 1 (unlimited floor life). No electrical ratings such as current or voltage were provided in the available data.
100 positions.
0.80mm.
Surface mount.
Gold with 0.76µm thickness.
7mm, 10mm, 13mm, 14mm, and 20mm.
Yes, it includes a board guide.
Yes, RoHS3 compliant.
