| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125 pcs
|
125 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape and Reel |

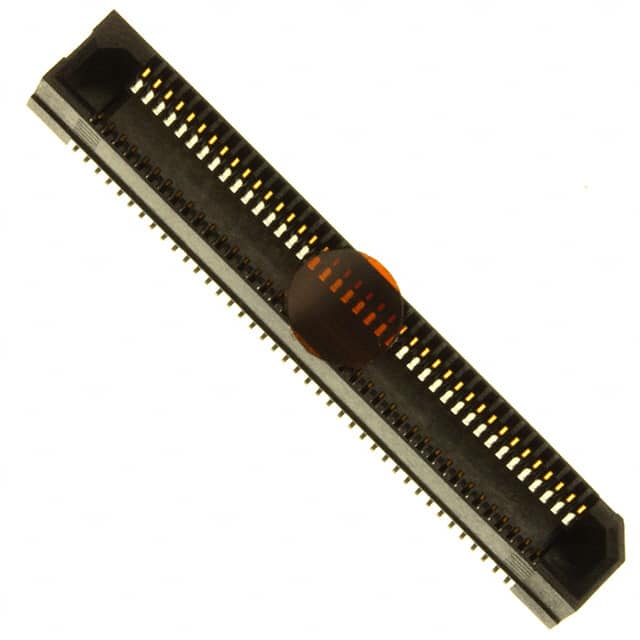

The Samtec ERF8-040-05.0-S-DV-K-TR is a 80 position, 2 row, 0.80mm pitch surface mount socket connector with outer shroud contacts. It features gold contact finish with 30.0µin thickness for reliable signal integrity. The connector supports mated stacking heights of 7mm, 10mm, 13mm, 14mm, and 20mm, making it suitable for mezzanine board-to-board applications. It includes board guide and pick and place features for automated assembly. The connector is supplied in tape and reel packaging.
0.80mm (0.031")
80 positions
Surface mount
Gold with 30.0µin (0.76µm) thickness
7mm, 10mm, 13mm, 14mm, and 20mm
Board guide and pick and place
