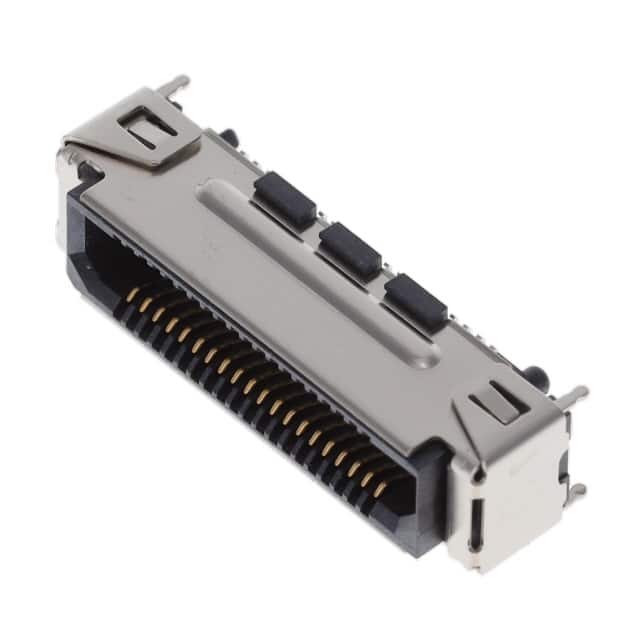

The Samtec ERF8-020-07.0-S-DV-EGPS-TR is a shielded socket connector from the Edge Rate series, designed for high-speed mezzanine board-to-board applications. It features 40 positions arranged in 2 rows with a 0.80mm pitch, and is surface mountable. The connector has a height above board of 7.24mm and supports multiple mated stacking heights: 9mm, 12mm, 15mm, 16mm, and 22mm. Contacts are made of beryllium copper with gold plating (30.0µin), ensuring reliable electrical performance. The insulator is black LCP. Electrical ratings include 1.4A per contact, 225VAC, and 318VDC. The operating temperature range is -55°C to +125°C. The connector includes board guide and shielding features. It is supplied in tape and reel packaging. The Edge Rate contact system provides up to 1.5mm contact wipe for a reliable connection. This connector is suitable for high-speed, high-cycle applications requiring ruggedness and signal integrity.
40 positions.
0.80mm.
1.4A per contact.
225VAC and 318VDC.
Surface mount.
-55°C to +125°C.
Gold, 30.0µin (0.76µm) thickness.
