| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
93 pcs
|
93 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch |

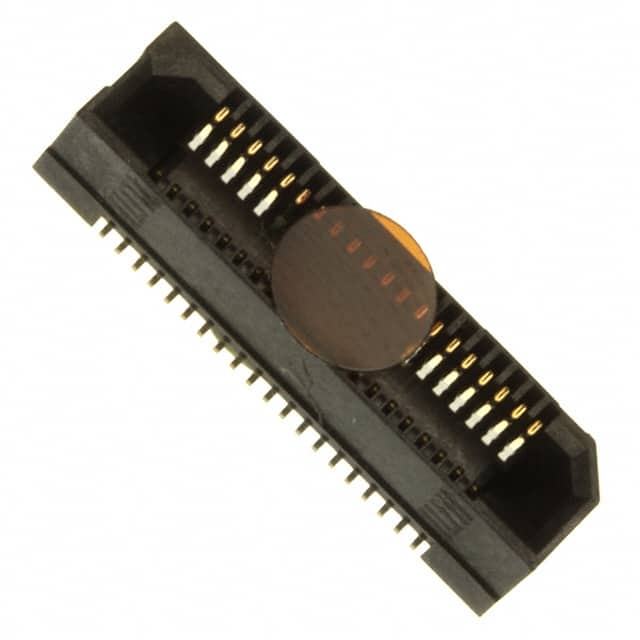

The ERF8-020-05.0-L-DV-K-TR is a 40-position socket connector with outer shroud contacts, designed for mezzanine board-to-board stacking applications. It features a 0.80mm pitch across 2 rows, surface mount termination, and a gold contact finish with 0.25µm thickness. The connector supports multiple mated stacking heights: 7mm, 10mm, 13mm, 14mm, and 20mm, providing flexibility in system design. Additional features include a board guide for alignment and pick-and-place capability for automated assembly. The connector is packaged in Tape & Reel for SMT processing. It is RoHS3 compliant, with a moisture sensitivity level of 1 (unlimited) and REACH unaffected. The gold finish ensures reliable electrical connections in high-density interconnects. This connector is suitable for use in telecommunications, data systems, and other electronic assemblies requiring compact board-to-board connections.
40 positions.
0.80mm.
Surface mount.
Gold with 0.25µm thickness.
7mm, 10mm, 13mm, 14mm, and 20mm.
Board guide and pick and place.
Yes, RoHS3 compliant.
