| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Standard Package Quantity |

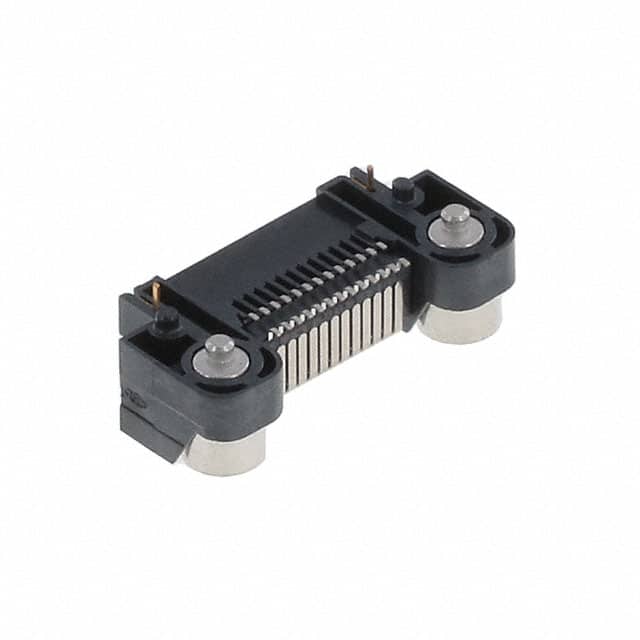

The ERF8-013-01-S-D-RA-L-TR is a socket connector from Samtec's ERF8 series, featuring 26 positions arranged in 2 rows with a 0.80mm pitch. It is designed for board-to-board or mezzanine applications requiring a low-profile, right-angle surface mount connection.
Key specifications include gold contact finish with 30.0µin thickness, a height above board of 0.246" (6.25mm), and features such as board guide, latches, and mounting flange for secure mating. The connector is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
The right-angle orientation allows for parallel board stacking or perpendicular connections. The surface mount design facilitates automated assembly. Standard packaging is in tape and reel with a quantity of 125 pieces.
26 positions.
0.80mm.
Surface Mount, Right Angle.
Gold with 30.0µin thickness.
0.246 inches (6.25mm).
Board guide, latches, and mounting flange.
Yes, RoHS3 compliant.
