| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
127 pcs
|
127 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch |

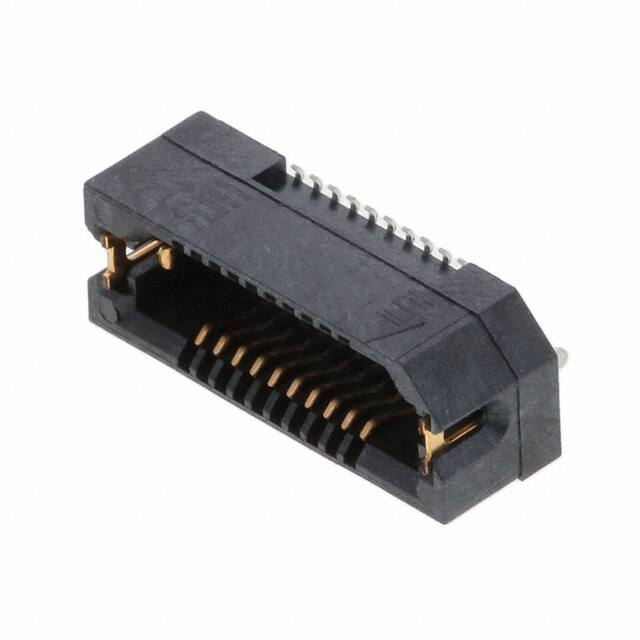

The Samtec ERF8 series socket connector is designed for board-to-board and mezzanine stacking applications. This part, ERF8-010-05.0-L-DV-L-K-TR, provides 20 signal contacts arranged in two rows on a 0.8mm pitch. The connector uses a surface mount termination with gold-plated contacts (0.25µm thickness) for reliable low-resistance connections.
This socket features a full metal shell or outer shroud that includes board alignment guides, integrated latches for secure mating, and pick-and-place pads for high-speed automated assembly. The mated stacking heights cover a range of 7mm, 10mm, 13mm, 14mm, and 20mm, offering flexibility in system design.
Packaged in Tape & Reel (TR) for automated placement, the connector is rated MSL 1 (unlimited floor life) and is compliant with RoHS3 and REACH regulations. The design emphasizes mechanical robustness with features suitable for high-reliability industrial and commercial electronics.
20 positions arranged in 2 rows.
0.80mm (0.031 inches).
Surface mount (SMD).
Gold plating with 0.25µm (10.0µin) thickness.
7mm, 10mm, 13mm, 14mm, and 20mm.
Board guide, latches, and pick-and-place pads.
Yes, it is RoHS3 compliant with MSL 1 (unlimited floor life) and is REACH unaffected.
