| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

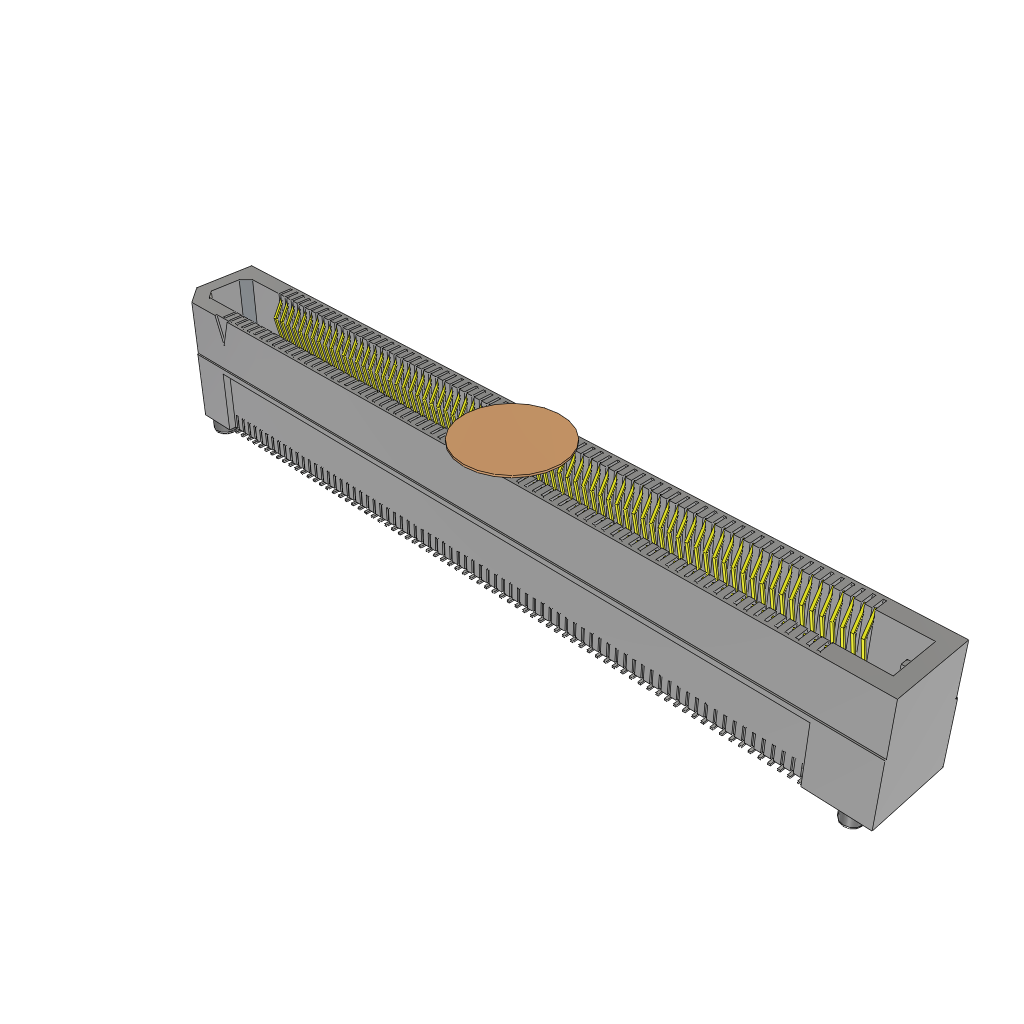

The Samtec ERF5-075-07.0-L-DV-K-TR is a 150 position socket connector with center strip contacts designed for mezzanine (board-to-board) applications. It features a 0.50mm pitch and a dual-row configuration, providing a compact high-density interconnect solution.
This connector is surface mountable and has a height above board of 6.90mm, supporting mated stacking heights of 9mm, 11mm, and 12mm. Contacts are finished with 0.25µm gold for reliable electrical performance. The part includes board guide and pick-and-place features for automated assembly.
Packaged in tape and reel format, it is suitable for high-volume manufacturing. The connector is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
150 positions.
0.50mm.
Surface mount.
Gold finish, 0.25µm thickness.
9mm, 11mm, and 12mm.
Yes, it includes pick-and-place and board guide features.
