| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
76 pcs
|
76 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch |

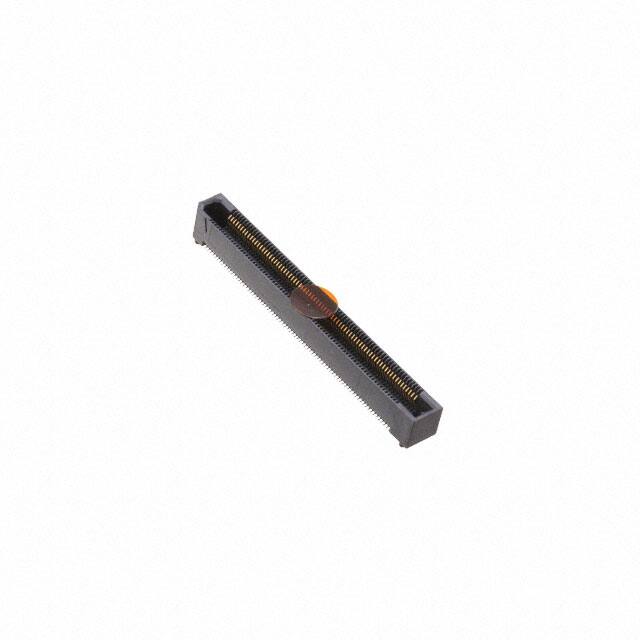

The Samtec ERF5-075-05.0-L-DV-K-TR is a high-density socket connector designed for board-to-board mezzanine applications. It features 150 positions arranged in 2 rows with a 0.50mm pitch, enabling compact interconnects in space-constrained designs. The connector uses gold contact finish with 10.0µin (0.25µm) thickness for reliable signal integrity and corrosion resistance.
This surface mount connector has a height above board of 4.90mm and supports mated stacking heights of 7mm, 9mm, and 10mm, providing flexibility in board spacing. It includes board guide and pick and place features for automated assembly. The part is RoHS3 compliant and REACH unaffected, with MSL 1 (unlimited) moisture sensitivity level.
Packaged in tape and reel, the ERF5-075-05.0-L-DV-K-TR is suitable for high-volume production. It is ideal for applications requiring high pin count and fine pitch in a mezzanine configuration.
It has 150 positions arranged in 2 rows.
The pitch is 0.50mm (0.020").
It is surface mount.
Gold contact finish with 10.0µin (0.25µm) thickness.
Mated stacking heights of 7mm, 9mm, and 10mm.
