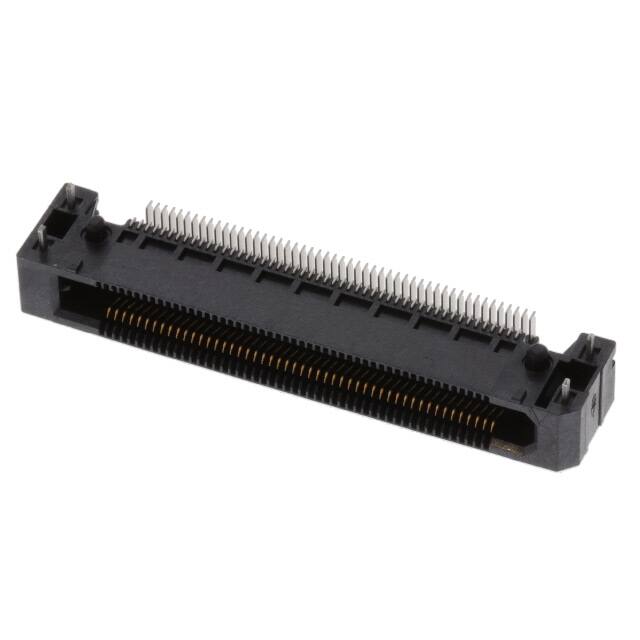

The Samtec ERF5-050-01-L-D-RA-TR is a 100-position mezzanine socket from the Edge Rate series, designed for high-speed, high-cycle applications. It features 2 rows of contacts at 0.50mm pitch, with a right-angle surface mount orientation. The insulator is black liquid crystal polymer (LCP), and terminals are beryllium copper (BeCu) with gold plating (10µin/0.25µm).
Key electrical ratings include 1.5A per contact, 190VAC/269VDC, and an operating temperature range of -55°C to +125°C. The contact wipe is up to 1.5mm, ensuring reliable connection. The connector includes a board guide feature for alignment during assembly.
Packaged in tape and reel, this socket is suitable for compact board-to-board stacking applications requiring a right-angle mating interface. The Edge Rate contact system reduces broadside coupling, optimizing signal integrity.
100 positions arranged in 2 rows.
0.50mm (0.020").
1.5 amps per contact.
190 VAC / 269 VDC.
Surface mount, right angle orientation.
-55°C to +125°C.
Gold plating with 10µin (0.25µm) thickness.
