Mfr Part #:

ERA-6YEB133V

Mfr Name: Panasonic Electronic Components

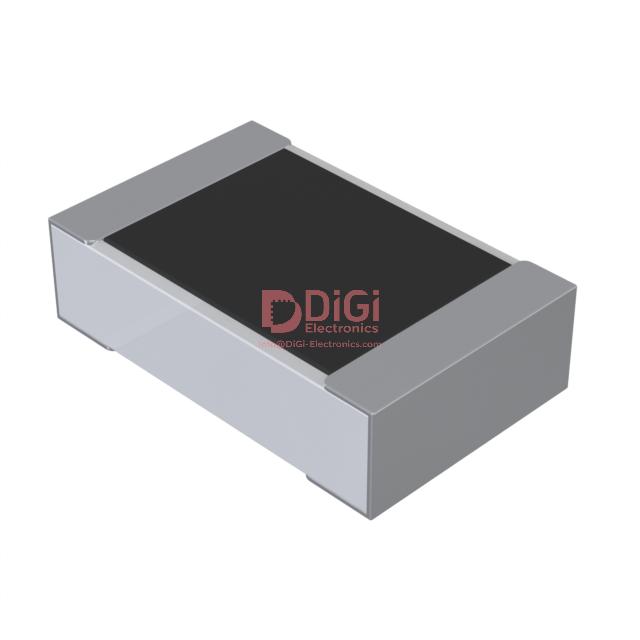

The Panasonic Electronic Components ERA-6YEB133V is a surface mount chip resistor with a resistance of 13 kOhms and a tolerance of ±0.1%. It has a power rating of 1/8W and comes in an 0805 package.

✓ Total Stock: 3,470 pcs

$ Price Range: $0.05

ERA-6YEB133V Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	3,345 pcs On Request	3345 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Akira Global ✓ Non-Authorised Inventory information	92 pcs On Request	92 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Hybrid Electronics ✓ Non-Authorised Inventory information	33 pcs On Request	33 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ERA-6YEB133V Description

Short technical summary and product information.

The ERA-6YEB133V from Panasonic Electronic Components is a metal film chip resistor designed for surface mount applications. It offers a precise resistance value of 13 kOhms with a tight tolerance of ±0.1%, making it suitable for applications requiring accuracy.

This resistor has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to 125°C, with a temperature coefficient of ±25ppm/°C. The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm.

Designed with two terminations, the ERA-6YEB133V is a reliable choice for various electronic circuits where stable resistance and precise performance are critical. Its construction is based on metal film technology, ensuring good performance characteristics.

ERA-6YEB133V Quick Information

Product Type: Chip Resistor - Surface Mount

Canonical Name: ERA-6YEB133V Metal Film Chip Resistor 13 kOhms ±0.1% 1/8W 0805

Subcategory: Surface Mount

ERA-6YEB133V Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ERA-6YEB133V Estimated Pricing

Qty	Low	High
1+	$0.05	$0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERA-6YEB133V Features

13 kOhms resistance with ±0.1% tolerance.
Rated for 0.125W (1/8W) power.
Metal film construction for stability.
0805 package size for surface mounting.
Wide operating temperature range.

ERA-6YEB133V Applications

Suitable for precision circuits.
Used in general electronic assemblies.
Ideal for compact designs.
Applications requiring stable resistance.

ERA-6YEB133V FAQs

6 frequently asked questions generated from this part’s specifications.

What is the resistance value of the ERA-6YEB133V?

The resistance value is 13 kOhms.

What is the tolerance of the ERA-6YEB133V chip resistor?

The tolerance is ±0.1%.

What is the power rating for the ERA-6YEB133V?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 125°C.

What is the package type for the ERA-6YEB133V?

The package type is 0805 (2012 Metric).

What is the temperature coefficient of the ERA-6YEB133V?

The temperature coefficient is ±25ppm/°C.

Category	Chip Resistor - Surface Mount
Manufacturer Name	Panasonic Electronic Components
Composition	Metal Film
Height	0.60mm (0.024")
Length	2.00mm (0.079")
Number of Terminations	2
Operating Temperature	-55°C ~ 125°C
Power (Watts)	0.125W, 1/8W
Resistance	13 kOhms
Supplier Device Package	0805
Temperature Coefficient	±25ppm/°C
Tolerance	±0.1%
Width	1.25mm (0.049")
