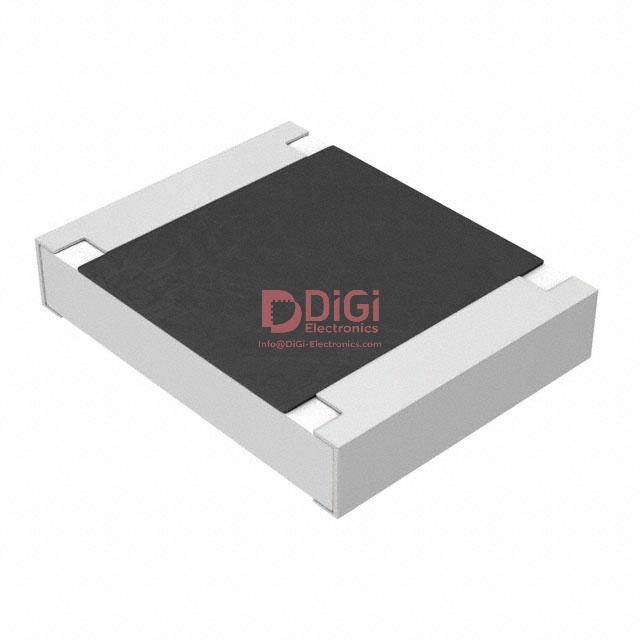

ERA-6AED101V The Panasonic Electronic Components ERA-6AED101V is a thin film chip resistor with 100 Ohms resistance and ±0.5% tolerance. It is rated for 1/8W power and comes in an 0805 package.
Mfr Part #:

ERA-6AED101V

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ERA-6AED101V is a thin film chip resistor with 100 Ohms resistance and ±0.5% tolerance. It is rated for 1/8W power and comes in an 0805 package.
✓ Total Stock: 3,625 pcs
$ Price Range: $0.05

ERA-6AED101V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3,625 pcs
On Request
3625 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERA-6AED101V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Industrial Grade
Length
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Ratings
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERA-6AED101V Description

Short technical summary and product information.

This Panasonic Electronic Components ERA-6AED101V is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 100 Ohms with a tight tolerance of ±0.5%, ensuring precise circuit performance.



The resistor has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to 155°C. Its thin film composition and AEC-Q200 qualification make it suitable for automotive applications.



The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length, 1.25mm in width, and 0.60mm in height. It has two terminations and a temperature coefficient of ±25ppm/°C.



Key specifications include a resistance of 100 Ohms, ±0.5% tolerance, 1/8W power, and an operating temperature range of -55°C to 155°C. The 0805 package size and AEC-Q200 rating are important design considerations.

ERA-6AED101V Quick Information

Product Type: Chip Resistor
Series: ERA-6A
Canonical Name: ERA-6AED101V Thin Film Chip Resistor 100 Ohm ±0.5% 1/8W 0805
Subcategory: Chip Resistor - Surface Mount

ERA-6AED101V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERA-6AED101V Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERA-6AED101V Features

  • 100 Ohm resistance with ±0.5% tolerance.
  • Rated for 0.125W (1/8W) power.
  • Operates from -55°C to 155°C.
  • Automotive AEC-Q200 qualified.
  • Compact 0805 package size.

ERA-6AED101V Applications

  • Ideal for automotive circuits.
  • Suitable for general purpose applications.
  • Used in signal processing.
  • Provides precise resistance values.

ERA-6AED101V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERA-6AED101V?

The resistance value is 100 Ohms.

What is the tolerance of the ERA-6AED101V resistor?

The tolerance is ±0.5%.

What is the power rating for the ERA-6AED101V?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What package size does the ERA-6AED101V come in?

It comes in an 0805 package.

Is the ERA-6AED101V qualified for automotive use?

Yes, it features Automotive AEC-Q200 qualification.
