Mfr Part #:

ERA-6AEB1332V

Mfr Name: Panasonic Electronic Components

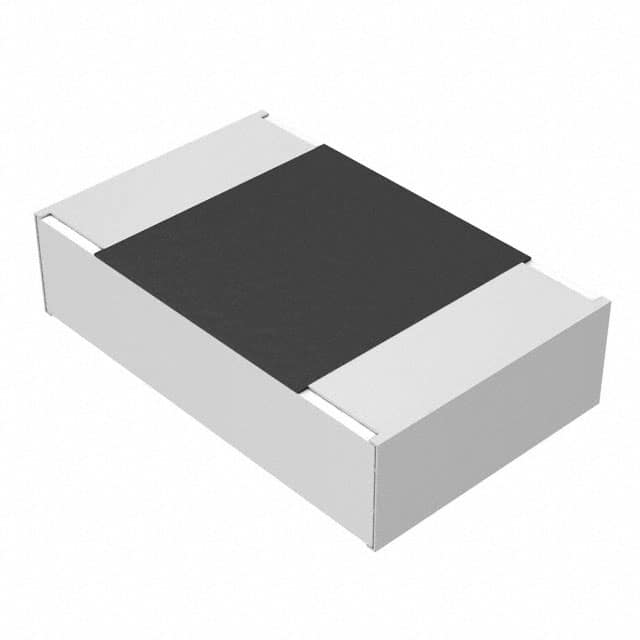

The Panasonic Electronic Components ERA-6AEB1332V is a thin film chip resistor with a resistance of 13.3 kOhms and a tolerance of ±0.1%. It is rated for 0.125W and features AEC-Q200 qualification.

✓ Total Stock: 4,539 pcs

$ Price Range: $0.05

ERA-6AEB1332V Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	4,539 pcs On Request	4539 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ERA-6AEB1332V Description

Short technical summary and product information.

This Panasonic Electronic Components ERA-6AEB1332V is a surface mount chip resistor belonging to the ERA-6A series. It offers a precise resistance value of 13.3 kOhms with a tight tolerance of ±0.1%. The resistor is designed for a power rating of 0.125W (1/8W) and utilizes thin film technology.

Key features include its AEC-Q200 qualification, making it suitable for automotive applications. The operating temperature range is -55°C to 155°C, with a temperature coefficient of ±25ppm/°C. The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm.

This component is designed for surface mounting and has two terminations. Its robust construction and precise electrical characteristics make it a reliable choice for various electronic designs requiring accurate resistance values in demanding environments.

ERA-6AEB1332V Quick Information

Product Type: Chip Resistor - Surface Mount

Series: ERA-6A

Canonical Name: Panasonic Electronic Components ERA-6AEB1332V Thin Film Chip Resistor

Subcategory: Surface Mount

ERA-6AEB1332V Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ERA-6AEB1332V Estimated Pricing

Qty	Low	High
1+	$0.05	$0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERA-6AEB1332V Features

13.3 kOhms resistance with ±0.1% tolerance.
0.125W power rating for 0805 package.
AEC-Q200 qualified for automotive use.
Thin film construction for precision.
Wide operating temperature range: -55°C to 155°C.

ERA-6AEB1332V Applications

Ideal for automotive electronics.
Suitable for precision circuits.
Used in temperature-sensitive applications.
Surface mount assembly compatibility.

ERA-6AEB1332V FAQs

6 frequently asked questions generated from this part’s specifications.

What is the resistance value of the ERA-6AEB1332V?

The resistance value is 13.3 kOhms.

What is the tolerance of the ERA-6AEB1332V resistor?

The tolerance is ±0.1%.

What is the power rating for the ERA-6AEB1332V?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the ERA-6AEB1332V available in?

It is available in the 0805 (2012 Metric) package size.

Does the ERA-6AEB1332V meet automotive standards?

Yes, it features AEC-Q200 qualification.

Category	Chip Resistor - Surface Mount
Manufacturer Name	Panasonic Electronic Components
Automotive Grade	Yes
Composition	Thin Film
Features	Automotive AEC-Q200
Height	0.60mm (0.024")
Industrial Grade	Yes
Length	2.00mm (0.079")
Number of Terminations	2
Operating Temperature	-55°C ~ 155°C
Power (Watts)	0.125W, 1/8W
Ratings	AEC-Q200
Resistance	13.3 kOhms
Supplier Device Package	0805
Tape & Reel	Tape & Reel (TR)
Temperature Coefficient	±25ppm/°C
Tolerance	±0.1%
Width	1.25mm (0.049")
